SPECIFICATIONS

Attention: If you are going to use it with a wall switch, the cable between dualr3 and the wall switch should not be more than 1 meter.

Wireless Standard: 802.11 b/g/n 2.4GHZ

Weight: 72 gram

Wattage: 2200

Voltage: 110-240V

Voice Control: Siri

System Support: IOS Android

Switch Mode: On Off

Supports: Google Home

Support: HomeKit

Smart Home: Smart WiFi Switch

Roller Shutter Mode: Roller Shutter

Origin: CN(Origin)

Max current: 15A(2 gang),10A(1 gang)

Max Wattage: 3300W(2 gang) / 2200W(1 gang)

Google Voice Control: Google Assistant

Gang: 2

Feature: WiFi Dual Switch R3

FCC Certification: FCC

External Switch: 2 Button AC Input

Dimension: 54 X 49 X 24 mm

Curtain Blinds Mode: Curtain Blinds

Color: White

Certification: FCC



Two Modes: On-Off and Motorized

1-Normal On-Off Switch

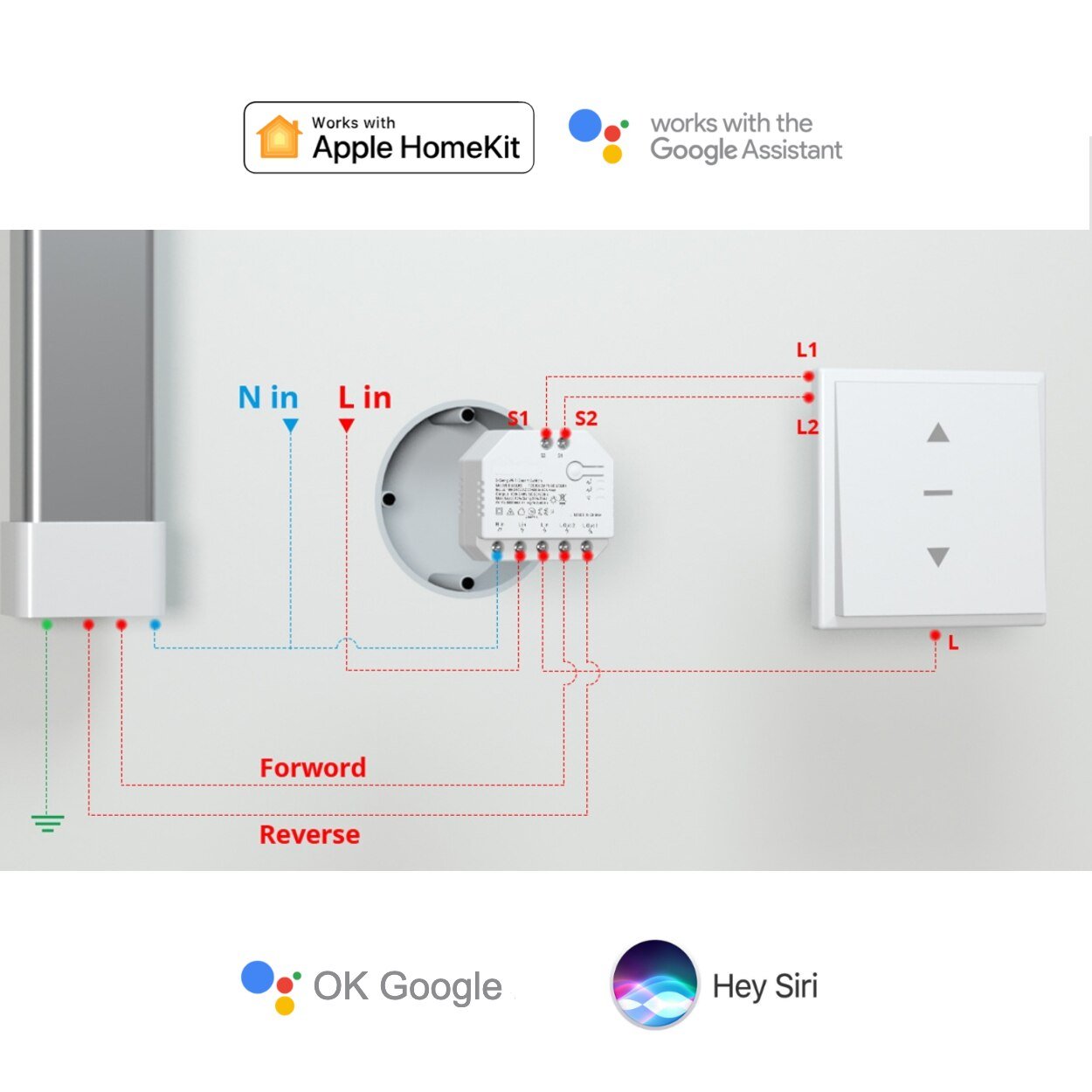

2-Shutter mode to control Roller Shutters, Curtains, Blinds, Jalousie…

Switches can be momentary type or toggle type – Momentary type recommended. (like a doorbell, push and release)

AC in and AC out

AC voltage button input,

AC voltage relay output,

On-off mode,

Motor mode,

Mini size 54 X 49 X 24 mm,

3300W(2 gang) / 2200W(1 gang),

DIN-Rail installation,

In wall installation



Everything at once!

Apple HomeKit

Google Home

+Alexa support added

Web UI

3.Party Http protocol integration

Local Http server.

– Everything Synchronized

All in one with a single iot device

No Additional Hub Required: Unlike some other smart home devices, this relay module doesn’t demand an extra hub or gateway. The simplified setup not only reduces complexity but also saves you costs, ensuring an efficient and straightforward solution.Home app requires Apple TV or HomePod and Alexa app requires Amazon Alexa. No Hub / Gateway required for Google Home, controlling from local IP address or HomeHome.App web interface.
