SPECIFICATIONS



Works With: HomeKit

Wireless Standard: 2.4GHZ, 802.11 b/g/n

WiFi: EEE 802.11 b/g/n 2.4GHZ

Voice Control: Siri

Sensor: Magnetic

Power Supply: 5V DC

Origin: CN(Origin)

Model Number: HHGARAGE

Model: HomeHome Garage

Google Home: Supported as a Switch

Dimensions: 82.5 * 65 * 45 (mm)

Compatibility: All Compatible

Certification: FCC

Case: IP67

Button Type: Momentary

Button Control: Yes

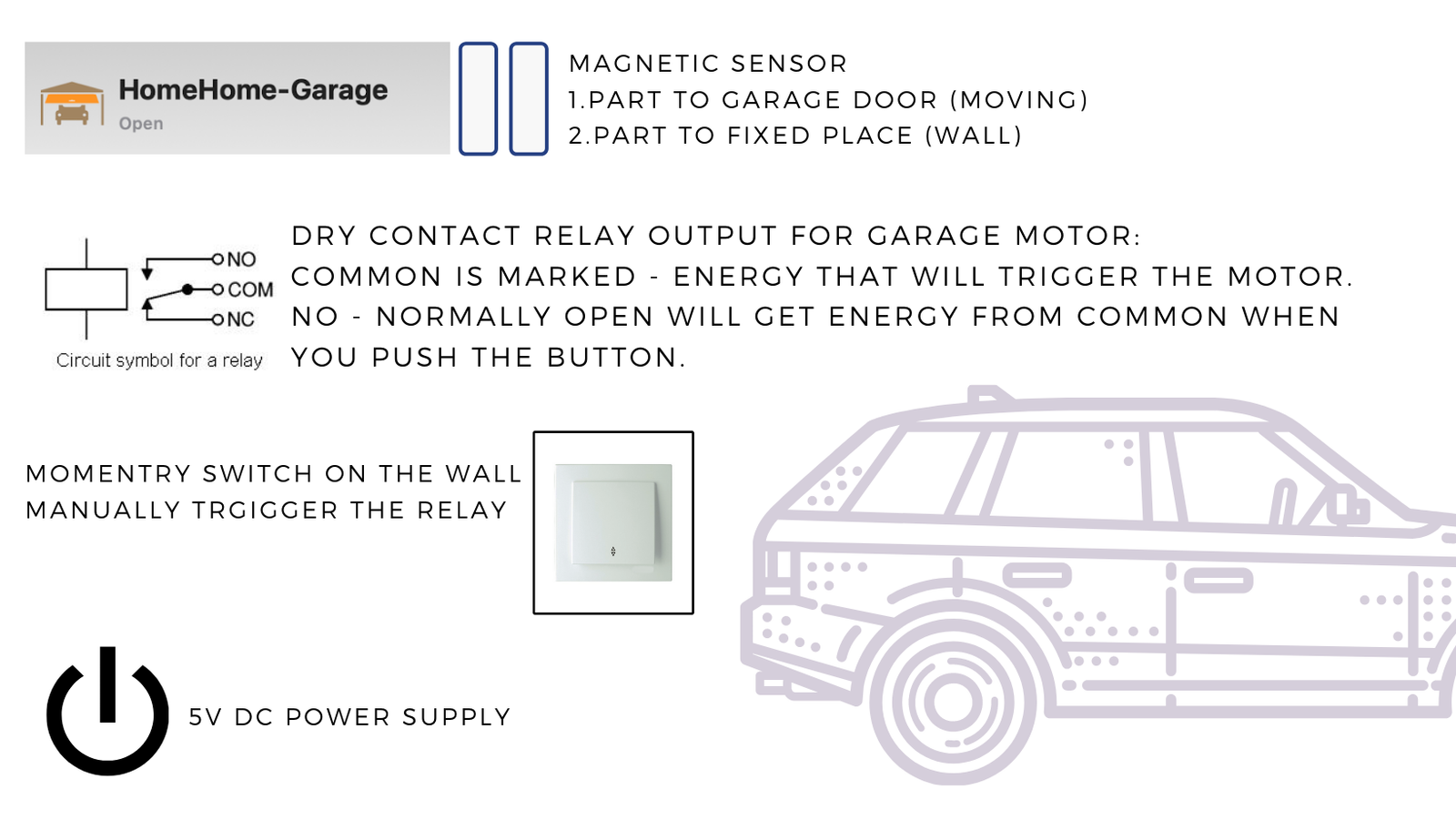

Output of the device is dry contact:



NC: Normally closed, when you trigger the device from app or button, relay will go to NO (normally open) contact and motor will work.

The motor is triggered when the COM (common) and NO terminals touch each other. A simple short circuit.





Garage Door For Apple HomeKit Smart Home WiFi Switch Relay Portal Gate Opener Siri Google Assistant Voice Control Magnet

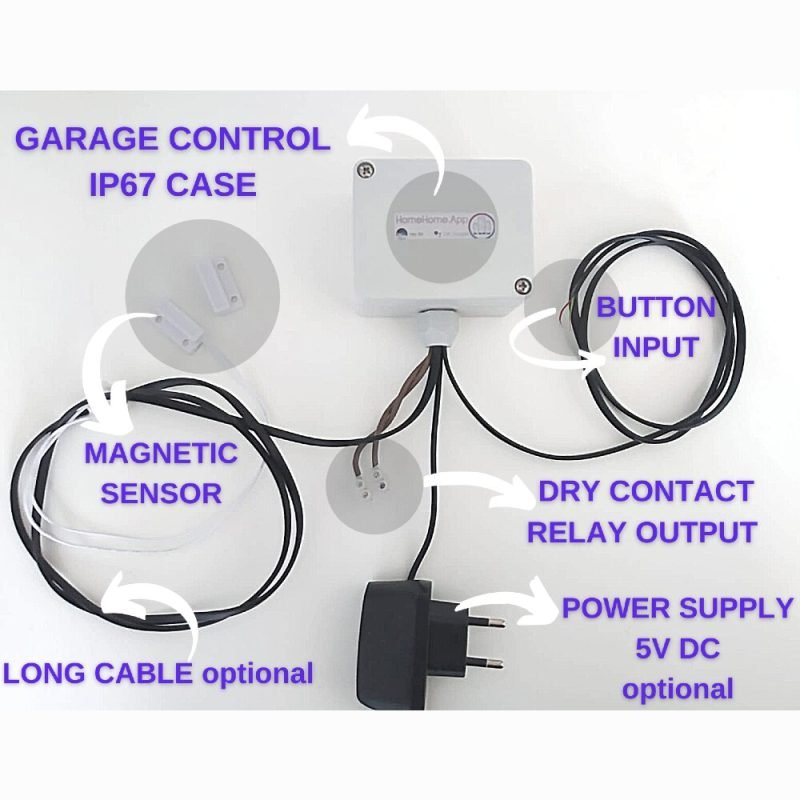

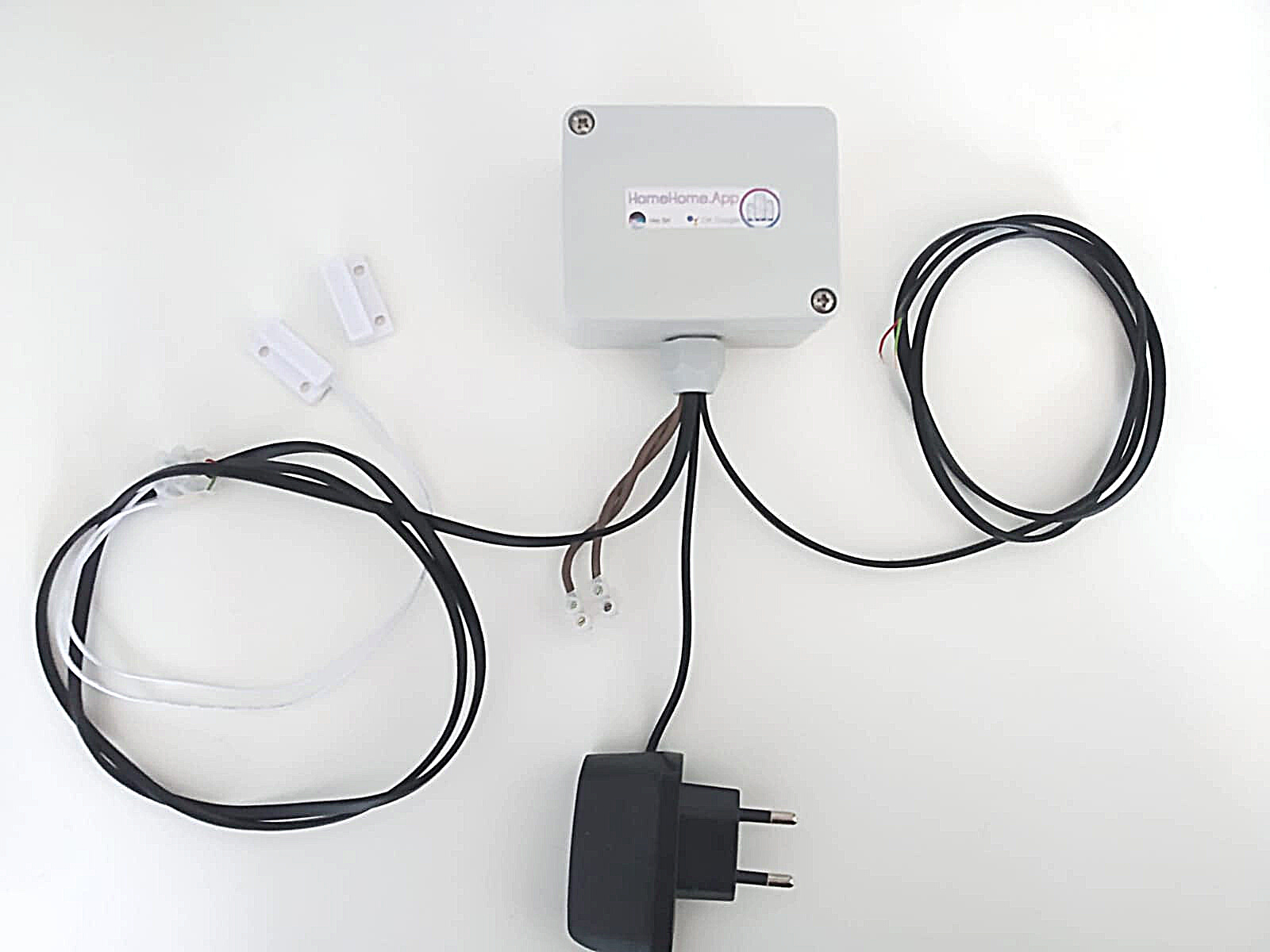

HOMEHOME GARAGE CONTROLLER

Control with :

HomeKit

Google Home

Local http server

Momentary switch

All synced

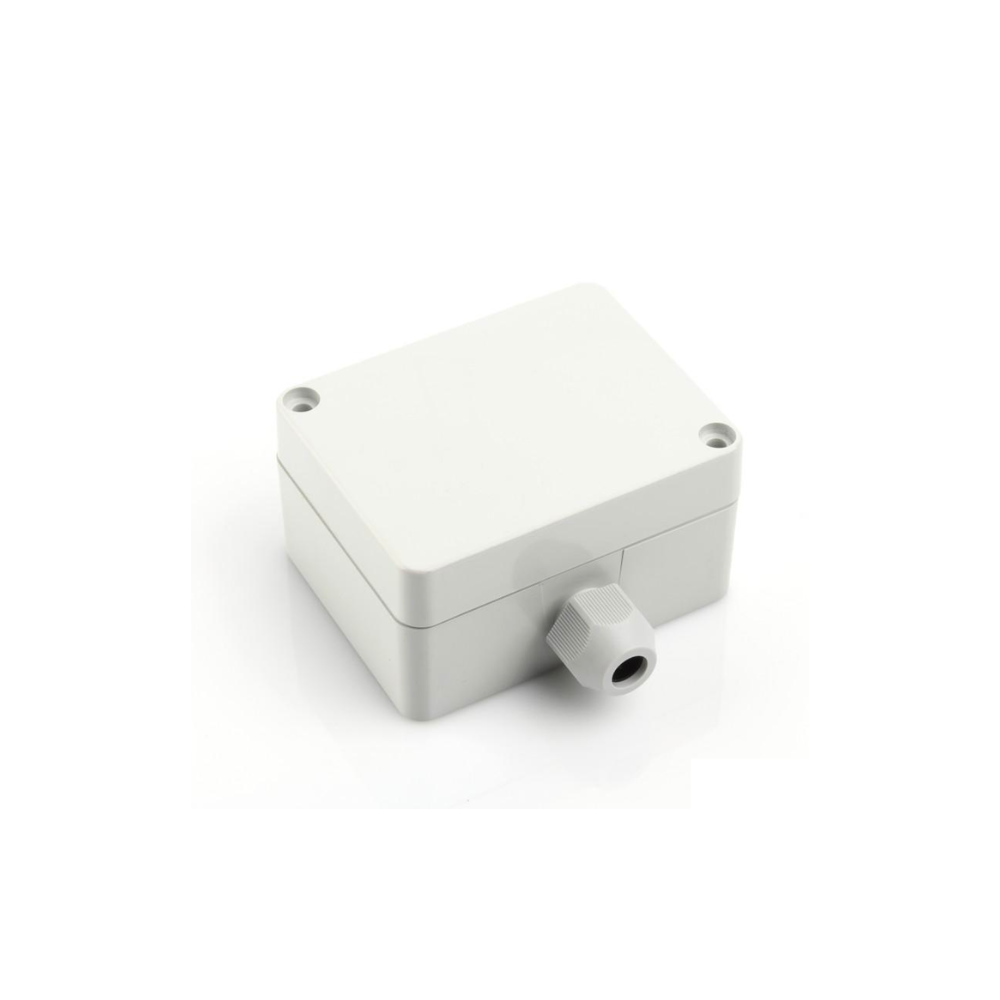

IP67 BOX

10A DRY CONTACT RELAY OUTPUT

MAGNETIC SENSOR FOR POSITION

WORKS WITH 5V DC

LONG CABLE OPTION

MOMENTARY (like doorbell switch) TYPE SWITCH CONTROL



If you selected +2 Meter option by default;

2 METER FOR MAGNETIC SENSOR

2 METER FOR SWITCH

If you selected +4 Meter option by default;

4 METER FOR MAGNETIC SENSOR

4 METER FOR SWITCH

If you selected +8 Meter option by default;

8 METER FOR MAGNETIC SENSOR

8 METER FOR SWITCH



Please send a message for custom cable length.



App Freedom

Family members with Android devices can also use it with Google Home app.

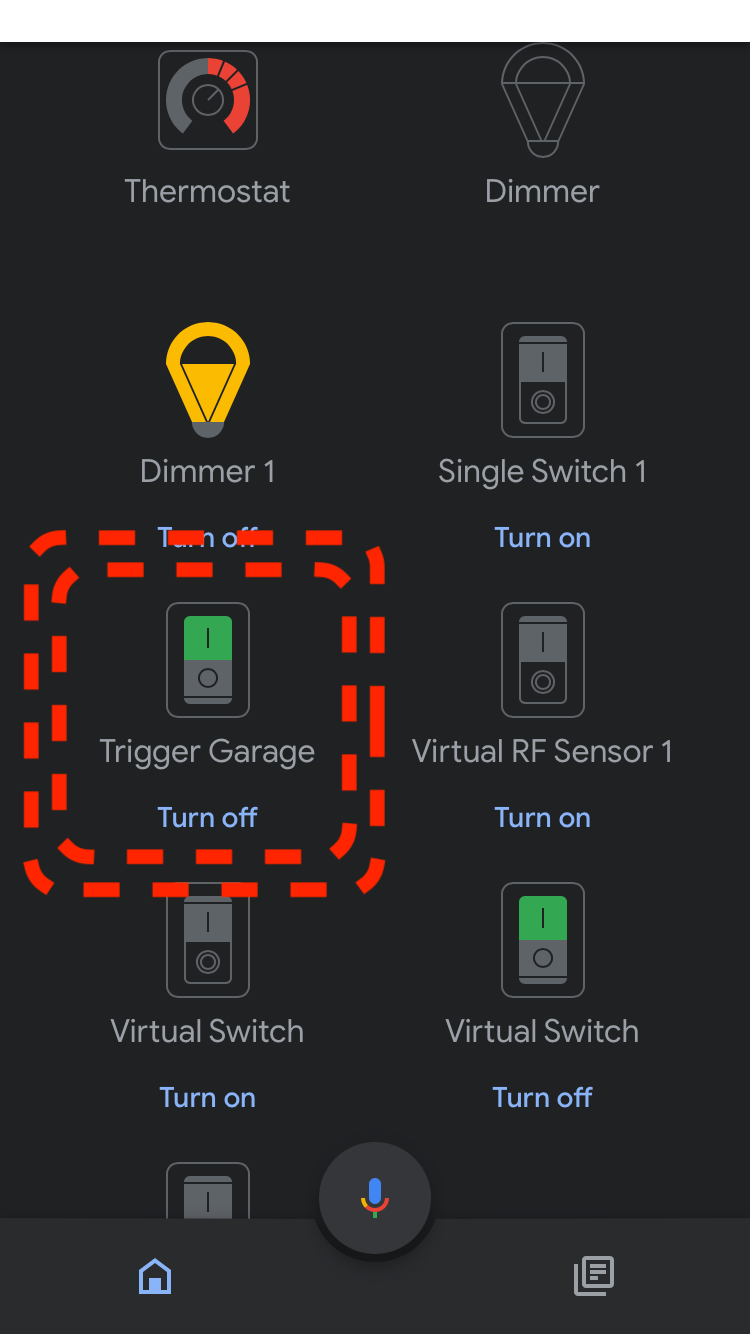

Trigger with Google Home – Shown as switch



Everything at once!

Apple HomeKit

Google Home

Web UI

3.Party Http protocol integration

Local Http server.

All in one with a single iot device

No Additional Hub Required: Unlike some other smart home devices, this relay module doesn’t demand an extra hub or gateway. The simplified setup not only reduces complexity but also saves you costs, ensuring an efficient and straightforward solution.Home app requires Apple TV or HomePod. No Hub / Gateway required for Google Home, controlling from local IP address or HomeHome.App web interface.

– Everything Synchronized
