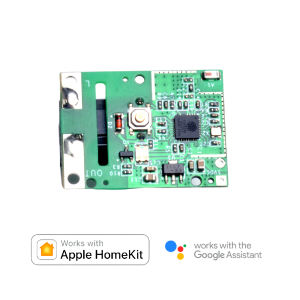

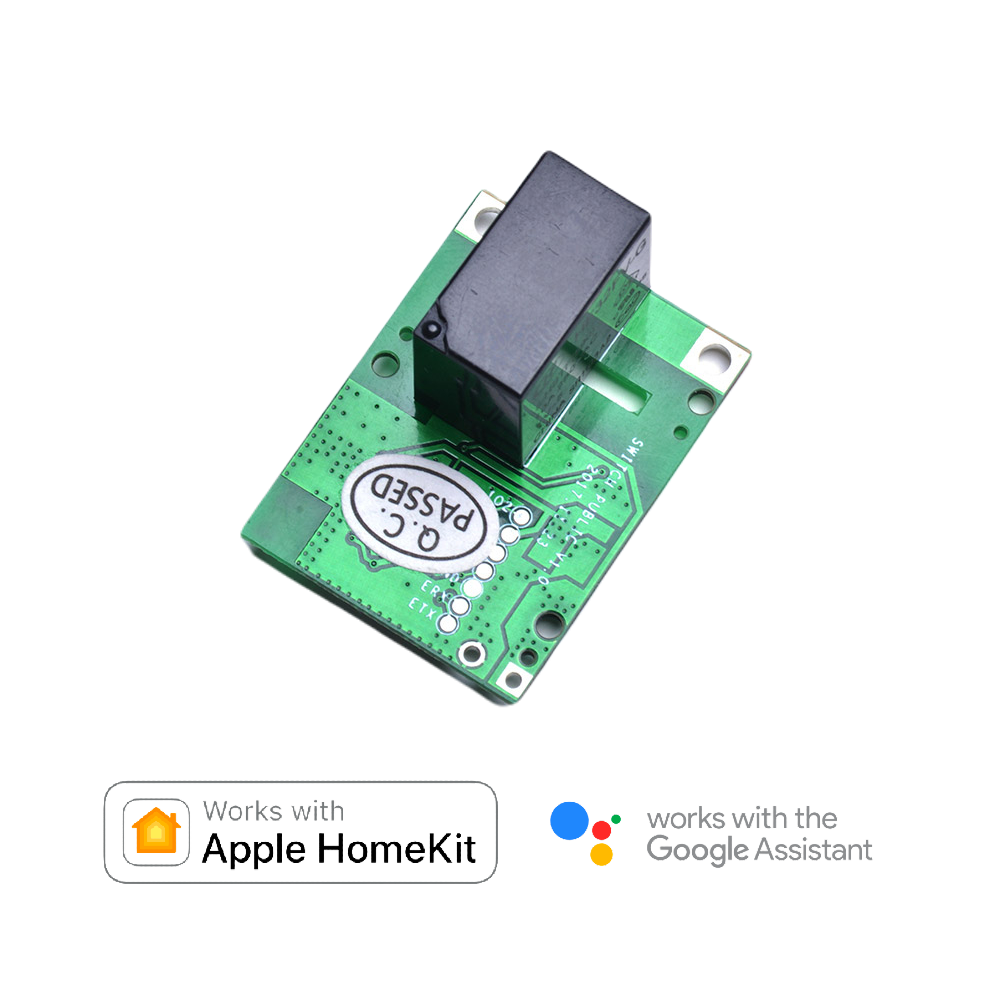

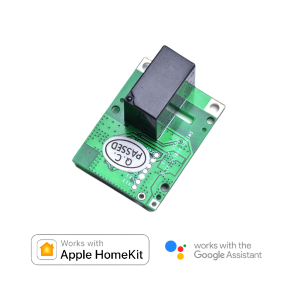

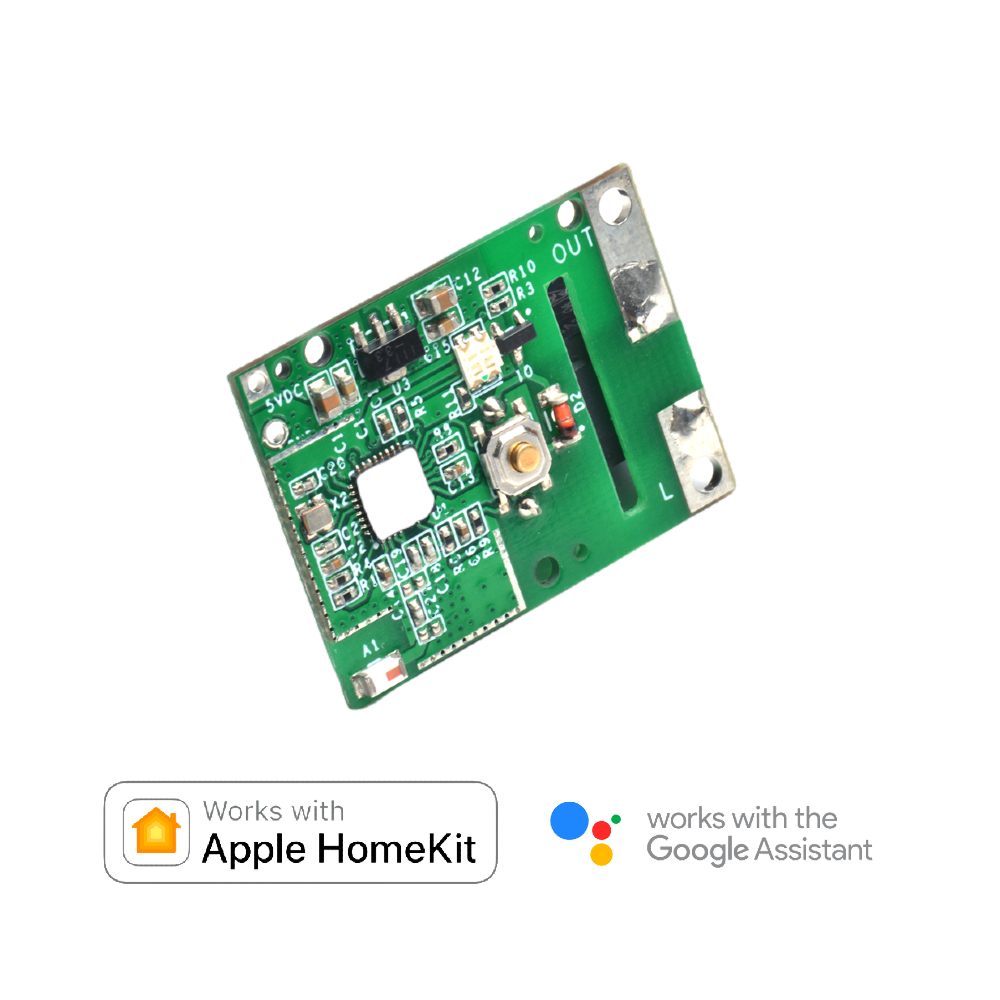

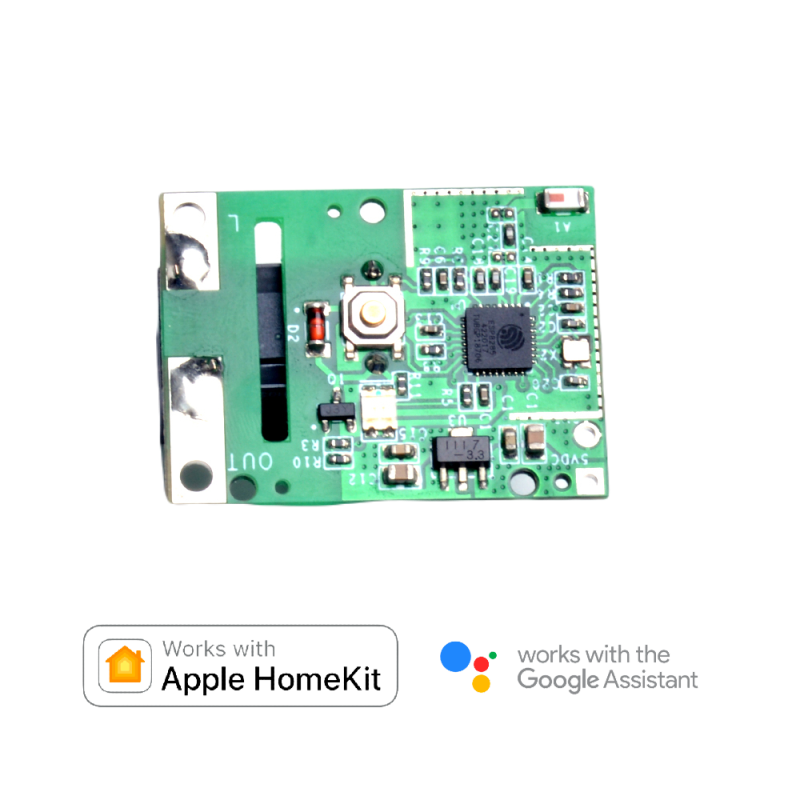

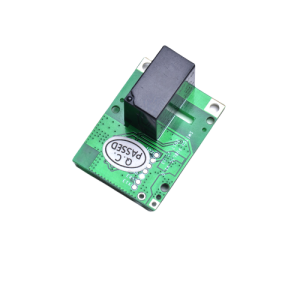

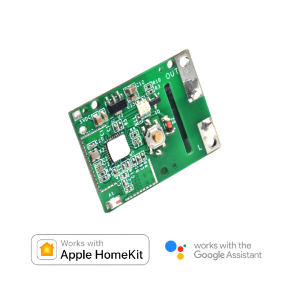

Nano DIY Dry Contact On Off Relay For Apple HomeKit Google Home

• Nano size 34.5*25*19mm
• Power Supply 5V DC

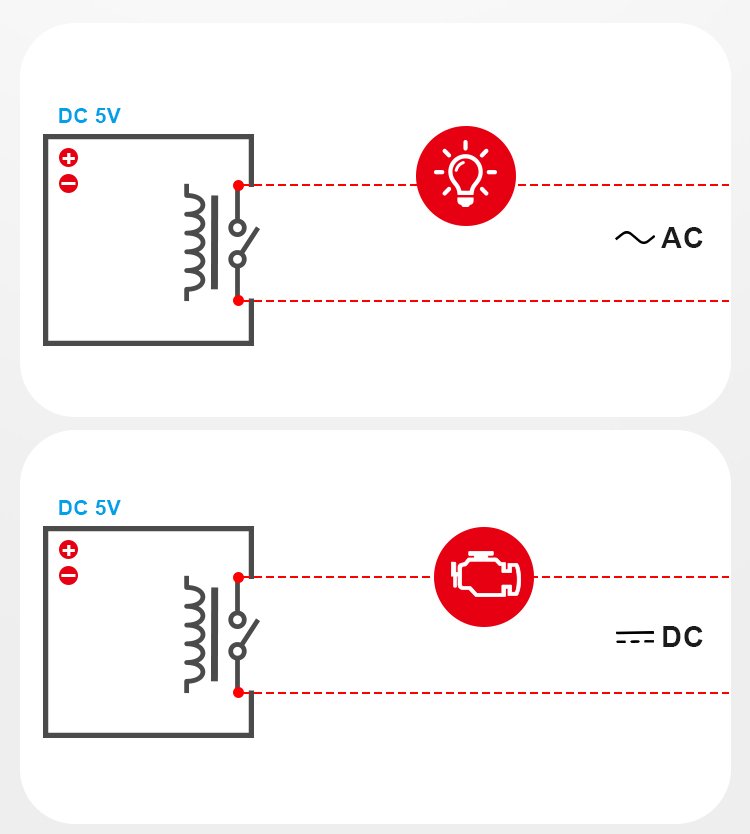

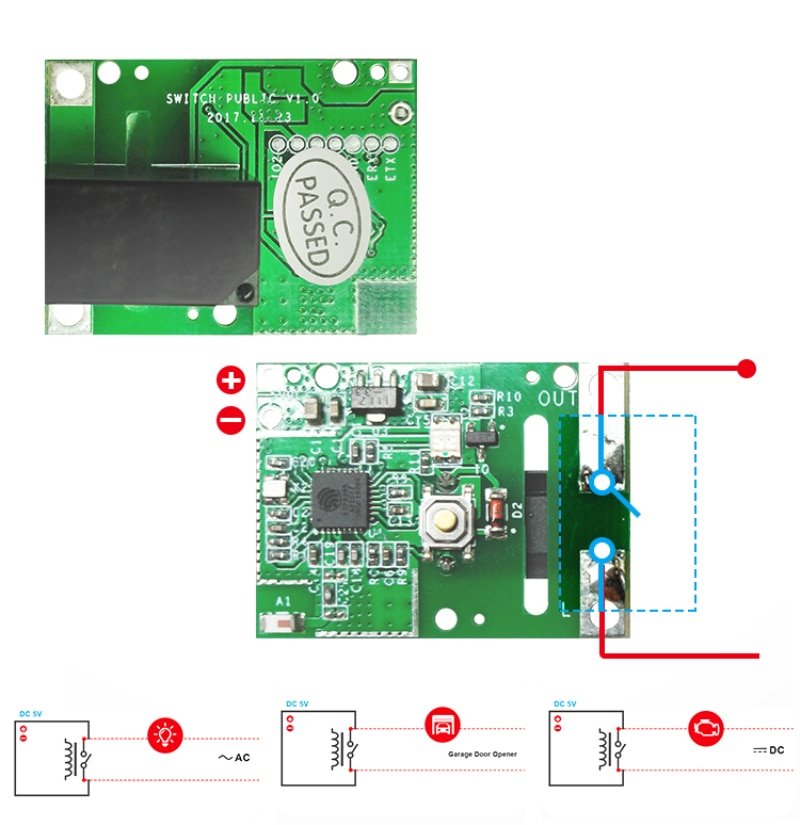

• Output Dry contact (DC/AC)
• Max Current 10 Ampere
• Humidity  5%-90%RH, Non-condensing
• Operating Temperature 0°C-40°C(32°F-104°F)
• Wi-Fi IEEE 802.11 b/g/n 2.4GHz
• Works with Apple HomeKit
• Works with Google Home
• Apple Voice Control: Siri
• Google Voice Control: Google Assistant
• Smart WiFi Switch
• Support: IOS AndroidPIN – Description
  GPI04: TX
  GPIO5: RX
  GPI02: I/O 2
  GPIO12: Relay control
  GPIO13: Wi-Fi LED
  Flash Voltage 3.3V



---

Everything at once!

Apple HomeKit

Google Home

Web UI

3.Party “Http” protocol integration,

Local “Http” server.



All in one with a single iot device

No Additional Hub Required: Unlike some other smart home devices, this relay module doesn’t demand an extra hub or gateway. The simplified setup not only reduces complexity but also saves you costs, ensuring an efficient and straightforward solution.Home app requires Apple TV or HomePod. No Hub / Gateway required for Google Home, controlling from local IP address or HomeHome.App web interface.

– Everything Synchronized



Features

Power of Esp8266 with our special firmware

Super Easy Setup

You will easily setup with single page, user firendly form.

FAQ

• Q:How to setup?

When you plug the device it will broadcast WiFi network : “HomeHome-xxxxxx” Password is “homehome” Join the network, make setup in captive portal;



-Select your device type

-Enter Gmail address

-You can set static ip (optional) for the device but you must know your gateway ip & subnet mask.

-Enter your router name and password if it doesn’t in the WiFi list “refresh network” or enter manually.

-Save.



You can change other device settings by entering ip address of your device like:

Auto Turn Off Feature – Set relay 1 auto off from 1 second to 64.800 seconds. Turn Back Feature – Turn to last position (on or off) when power failure or restarts.



• Q:Internet Required?

You can use Apple HomeKit and local “Http” server (write your device ip in to a web browser) without internet.



Google Home and Web UI needs internet connection.



• Q:Updating device firmware?

If there is a firmware update, you will see in local “Http” page. Update will be done OTA – over the air.









Setup guide: HomeHome.App
