WiFi Smart Home 4 For Apple HomeKit Switch Dry Contact Relay Siri Google Assistant Voice Control Automation Socket Schedle Iot

DIY Advantages

‣ Low power 1.Model 5DC / 2.Model 12DC power supply

‣ Dry Contact Relays 90-250AC / 30VDC

‣ Small Size 6.3*6*1.9 CM

‣ 4 Channels relay for On-Off Switch

‣ Play & Enjoy

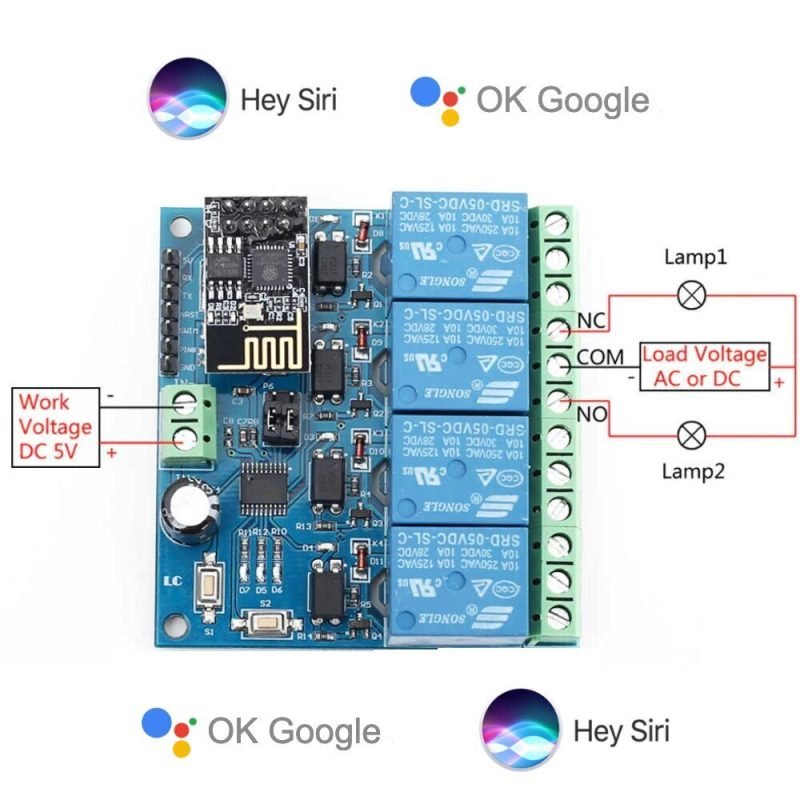

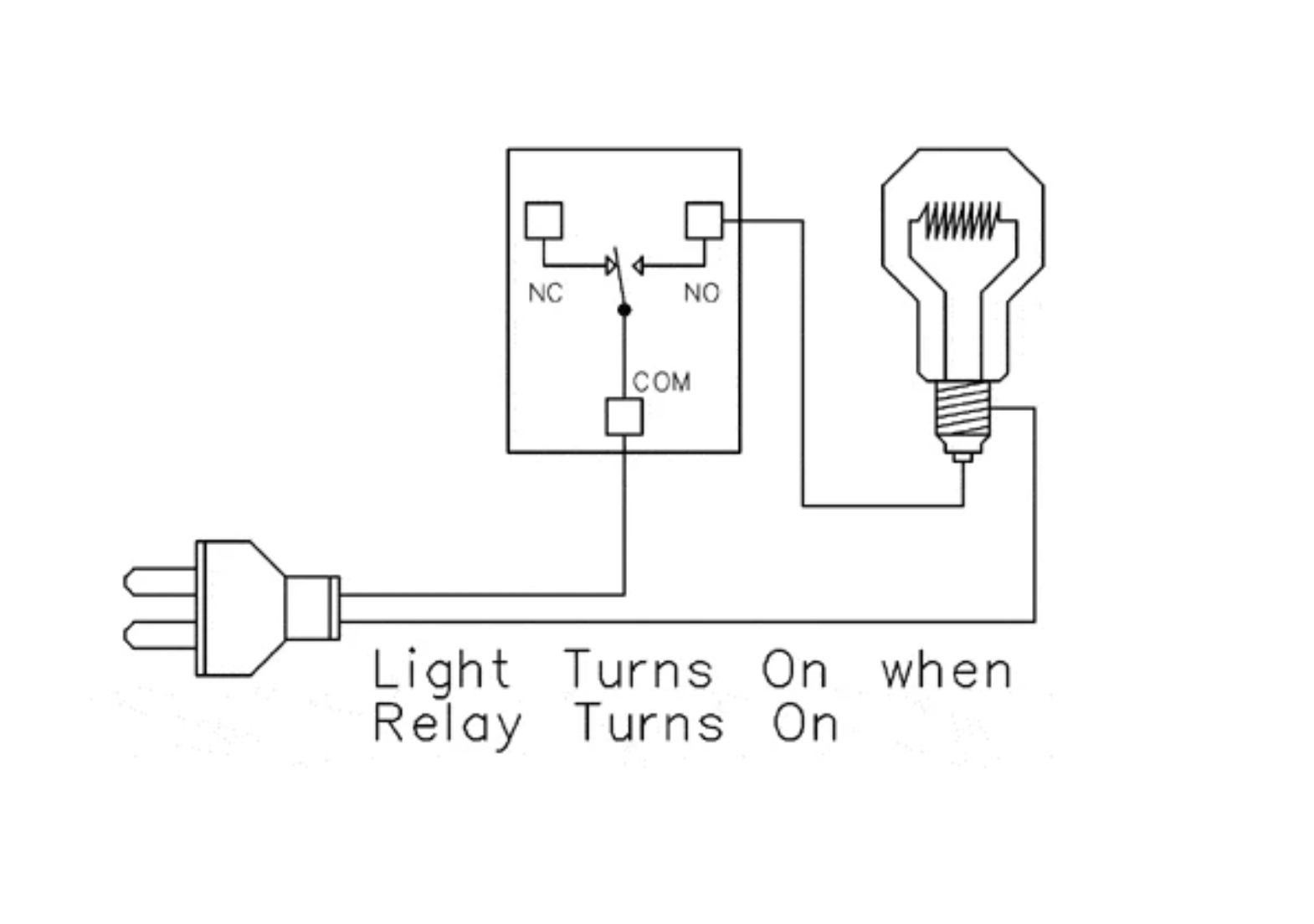

Output Normally Open (NO) Normally Close (NC)

Attention:  This device do not have button input, control with app

ESP01 and lifetime subscription included

Everything at once!

Apple HomeKit

Google Home

Web UI

3.Party Http protocol integration

Local Http server.

All in one with a single iot device

No Additional Hub Required: Unlike some other smart home devices, this relay module doesn’t demand an extra hub or gateway. The simplified setup not only reduces complexity but also saves you costs, ensuring an efficient and straightforward solution.Home app requires Apple TV or HomePod. No Hub / Gateway required for Google Home, controlling from local IP address or HomeHome.App web interface.

– Everything Synchronized


Power of Esp8266 with our special firmware

Super Easy Setup

You will easily setup with single page, user firendly form.


  • Q:How to setup?

When you plug the device it will broadcast WiFi network : “HomeHome-xxxxxx” Password is “homehome” Join the network, make setup in captive portal;


-Select your device type

-Select switch type (momentry/toogle) and required gmail account.

-You can set static ip (optional) for the device but you must know your gateway ip & subnet mask.

-Enter your router name and password if it doesn’t in the WiFi list “refresh network” or enter manually.



You can change other device settings by entering ip address of your device like:

Auto Turn Off Feature – Set relay 1 auto off from 1 second to 64.800 secondsTurn Back Feature – Turn to last position (on or off) when power failure or restarts.


  • Q:Internet Required?

You can use Apple HomeKit and local http server (write your device ip in to a web browser) without internet.


Google Home and Web UI needs internet connection.


  • Q:Updating device firmware?

If there is a firmware update, you will see in local http server page. Update will be done OTA – over the air.


  • Q:3th Party Apps – HTTP Server Commands

You can control HomeHome.App with 3th party apps. Your email address must be gmail

Turn on 1. relay: ‘ip.address/1/on?myEmail’

Turn off 1. relay: ‘ip.address/1/off?myEmail’

All state replies are in array for example: [0,1,2,2] 0 –> off , 1 –> on , 2 –> none

Get all relay states: ‘ip.address/all?myEmail’ 1-2-4 relay devices are using the same firmware so we push all together.

You can easly understand this is a 2 relay device. First relay is off, second relay is on in this example.


Ağırlık 0,2 kg

12v, 5v


12v DC, 5v DC
