SPECIFICATIONS



If you want to use this product without a button and without connecting a cable; You can control it from the touch screen of this product: “Smart Touch HomeKit Panel Switchman M5” . Thus, you can make the system perfect with 16 scenario buttons.



Works with: HomeKit

Type: Watering Kits

Relay Quantity: 16

Relay DC: 10A 30V DC

Relay AC: 10A 250V AC

Origin: CN(Origin)

Model Number: 16chIrr

Material: Plastic

Dry Contact: Yes

DIN Rail: Yes

Chip: ESP32

Button Input: 16

Android Support: Google Home

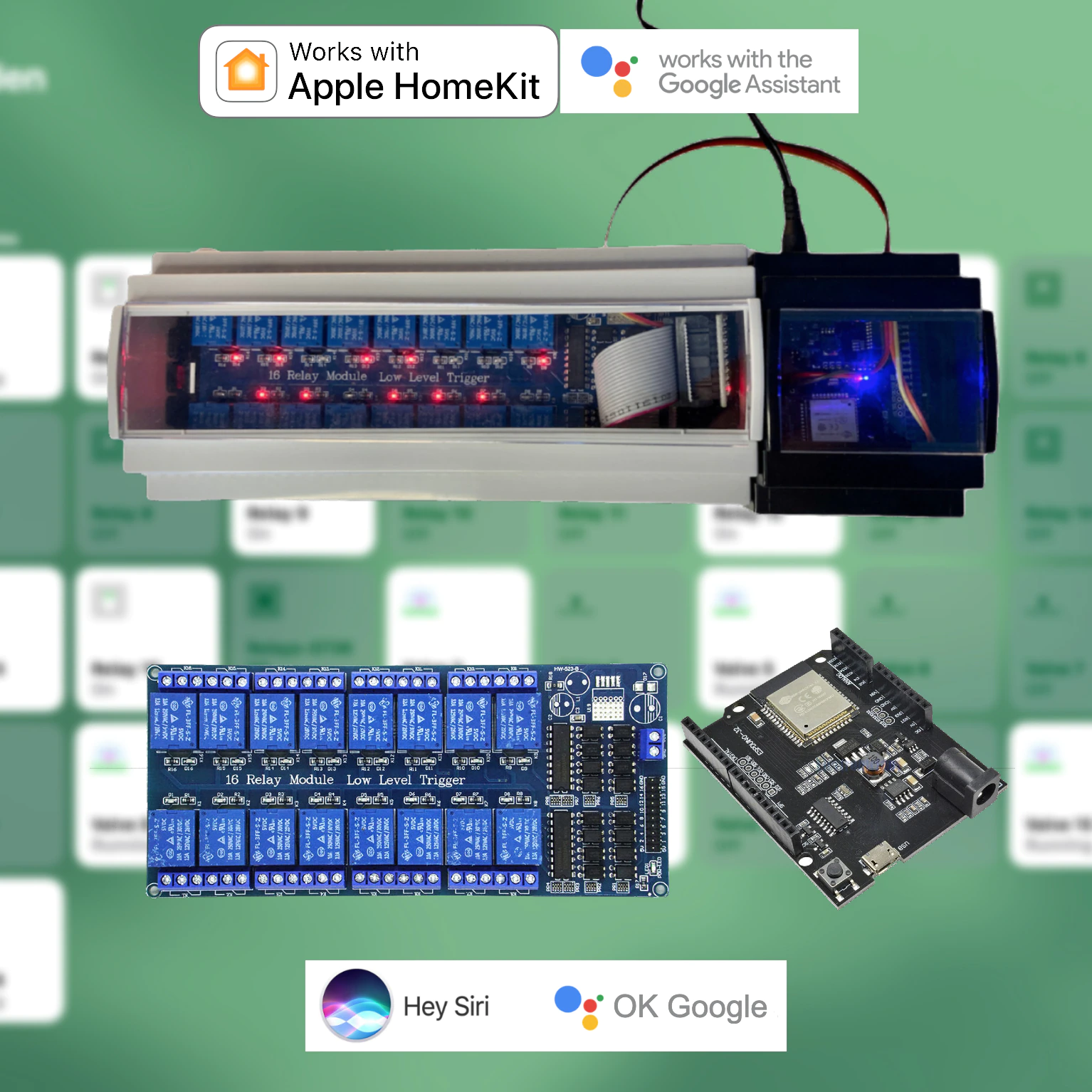

Irrigation Switch For Apple HomeKit Smart Home WiFi Schedule 16 Relay Siri Google Assistant Voice Timing Dry Contact Garden



Switch For Apple HomeKit Smart Home WiFi Schedule 16 Relay Irrigration Siri Google Assistant Voice Timing Dry Contact Garden





MULTI PURPOSE 16CH RELAY

2 MODES:

1-ON OFF SWITCH

2-VALVE CONTROL



Dry contacts can trigger; contactors, valves or even a *remote control or **whatever you want to control!



*Connect the remote control button and ground outputs to the relay contact with cables.



**Examine the Relay operating diagram to see the potential.









EASY SCHEDULE FOR IRRIGRATION

Use Switch accessory to make easy schedules.



SWITCH MODE AUTO OFF TIMER

Set auto off timer 1 second to 24 hours



Relay timers can be set separately for each relay.

VALVE MODE AUTO OFF TIMER

Set auto off for valves up to 1 hour.



BUTTON TYPES

Momentary and Toggle



SCENE BUTTONS

You can connect buttons to this device and setup as Momentray or Toggle, both types supported.



Use Momentary button type to use all

1-Single Press

2-Double Press

3-Long Press

features.

Single press will always turn on-off the relay.

Set automations – scenes.



VALVE COUNTDOWN

1 second to 1 hour

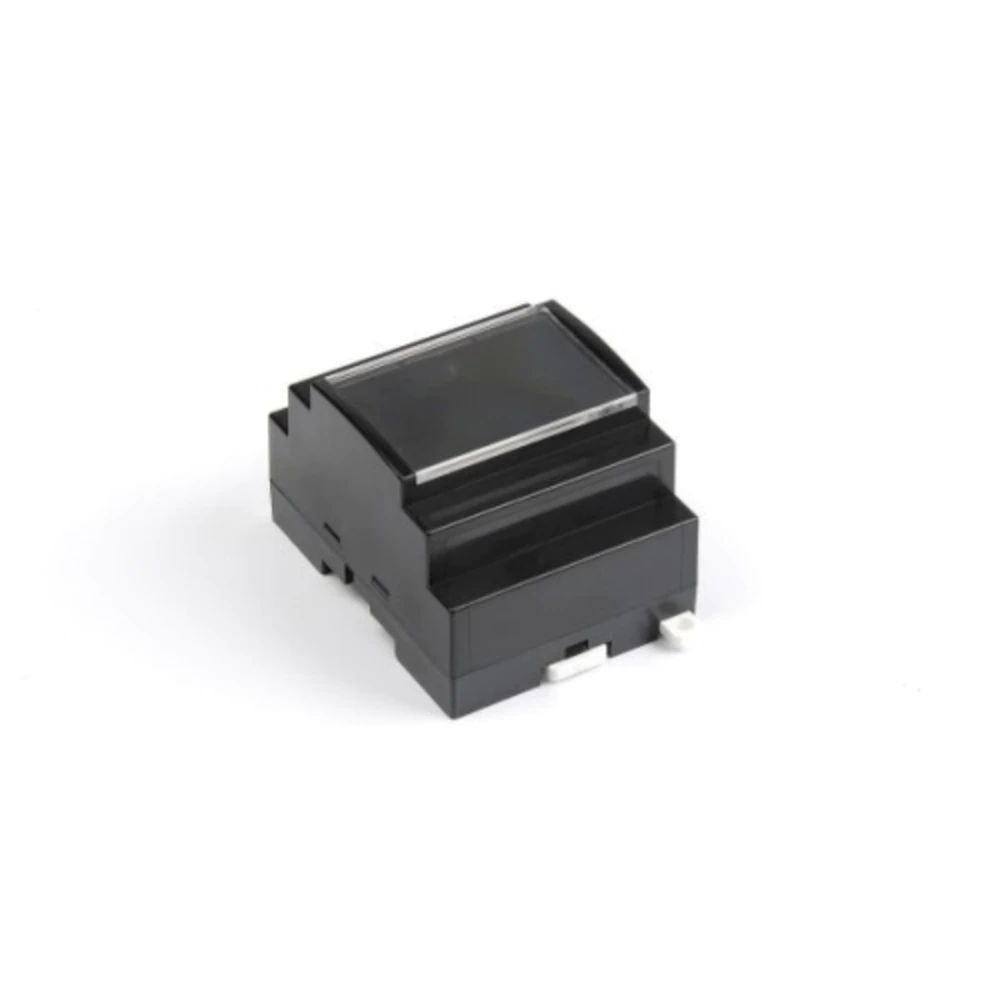

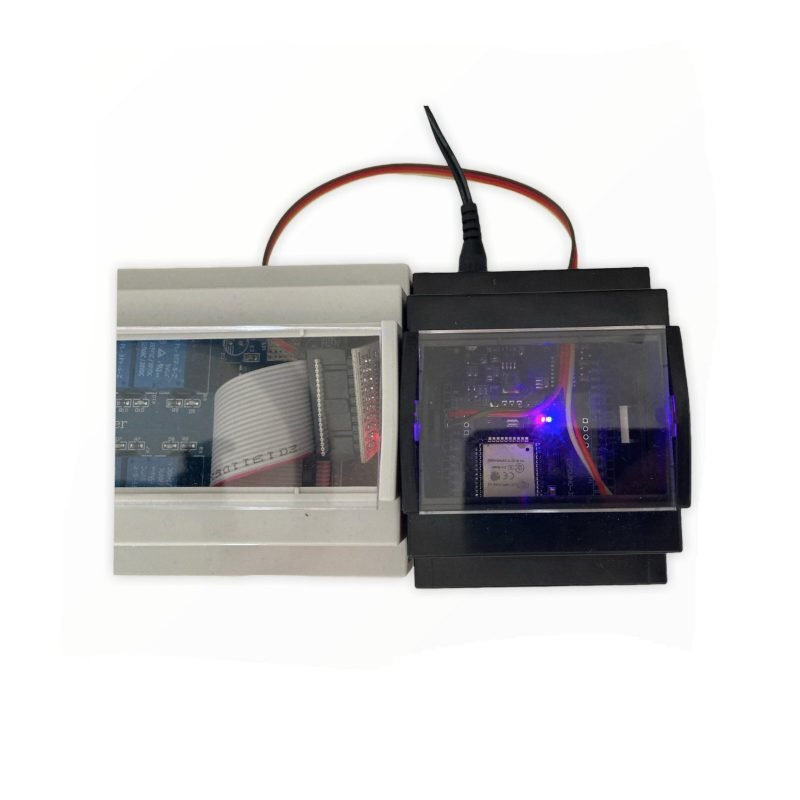

DIN RAIL AND WALL MOUNT

Order with the case option to keep the system organized.



LOCAL HTTP SERVER

Enter device ip to a web brwoser



3.Party integration with websocket



FULL SUPPORT FOR INSTALLATION

Accessories for installation are included in the package for free.



Dupont wires and connectors for button control.

EASY BUTTON CONNECTION

Buttons directly control relays + all buttons are shown as “Scene buttons”



Dry Contacts

You can connect AC or DC voltage

10A 250V AC / 30V DC



COM – Common

NO – Normally Open

NC – Normally Close



Everything at once!

Apple HomeKit

Google Home

+Alexa support added

Web UI

3.Party Http protocol integration

Local Http server.

– Everything Synchronized

All in one with a single iot device

No Additional Hub Required: Unlike some other smart home devices, this relay module doesn’t demand an extra hub or gateway. The simplified setup not only reduces complexity but also saves you costs, ensuring an efficient and straightforward solution.Home app requires Apple TV or HomePod and Alexa app requires Amazon Alexa. No Hub / Gateway required for Google Home, controlling from local IP address or HomeHome.App web interface.



Make automations with scenes and routines.
