SPECIFICATIONS



Work With: HomeKit

Wireless Standard: 2.4GHZ, 802.11 b/g/n

WiFi: EEE 802.11 b/g/n 2.4GHZ

Voice Control: Siri

Virtual Thermostat: Yes

USB Cable for Sensor: 2 Meters

Switch Dimensions: 42.6X42.6X20mm

Supports: IOS Android Google Home

Smart Home: Smart WiFi Switch

Relay Weight: 45gr

Output: AC 100-240V 50/60Hz 10A Max

Max current: 10A

Max Wattage: 2200W

Material: PC V0

Input: AC 100-240V 50/60Hz 10A Max

IP Rating: IP-67

Google Voice Control: Google Assistant

Function: 1 Gang WiFi Switch

Enclosure Material: Fire-retardant PC V0

Case Weight: 58gr

Case Dimensions: 80x50x20 mm

Case Color: Light Gray

2.Optional Sensor: Temperature and Humidity

2 Way: 2 Way 1 gang switch

1.Optional Sensor: Waterproof Temperature

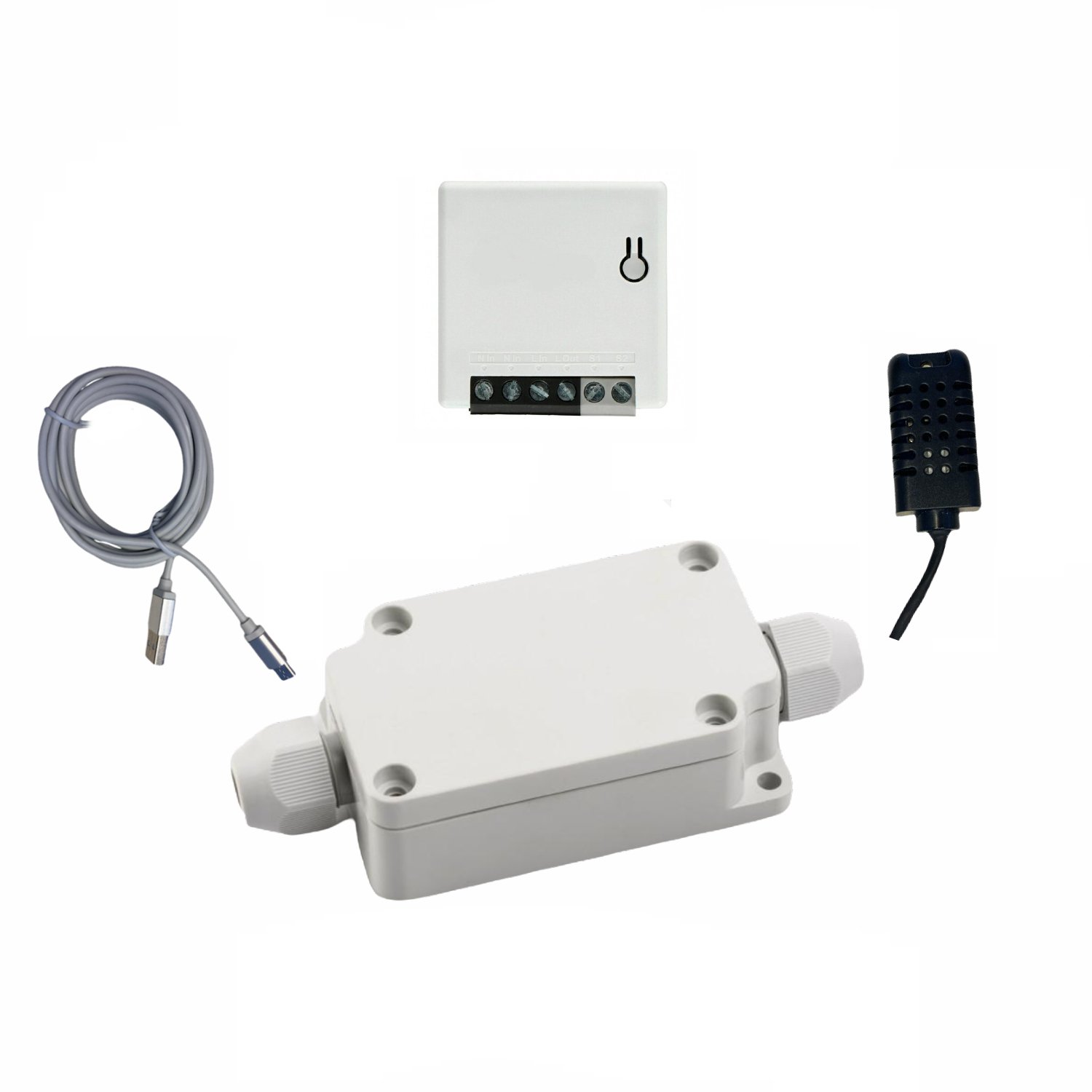

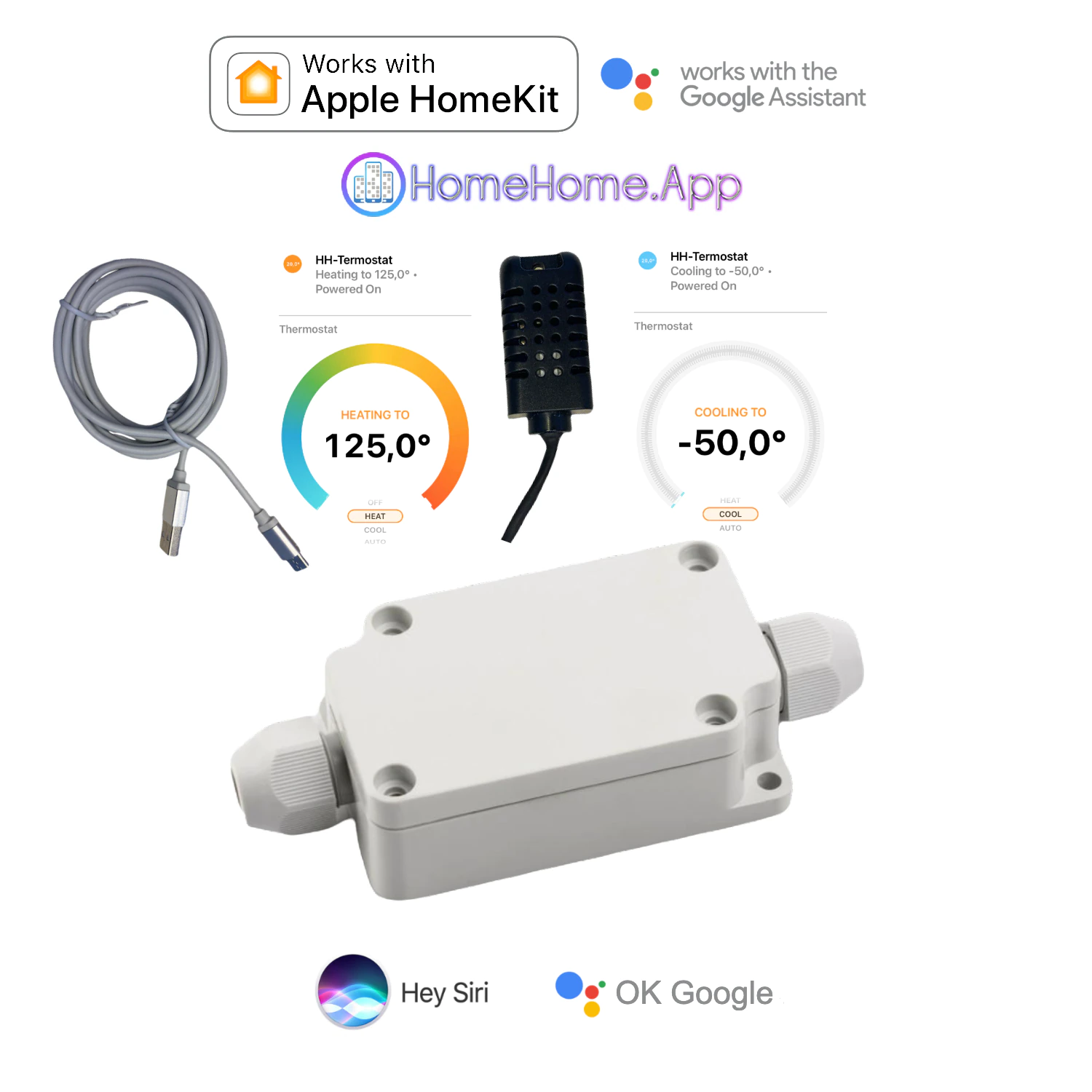

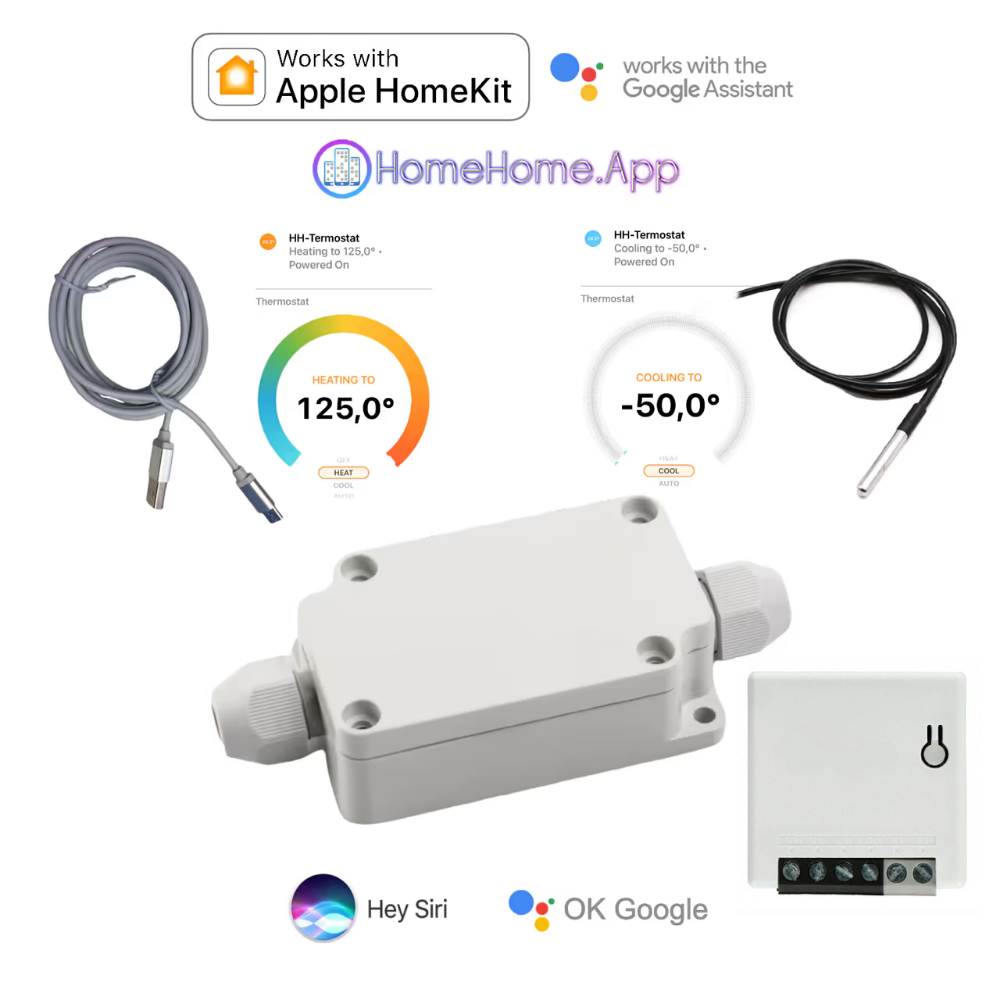

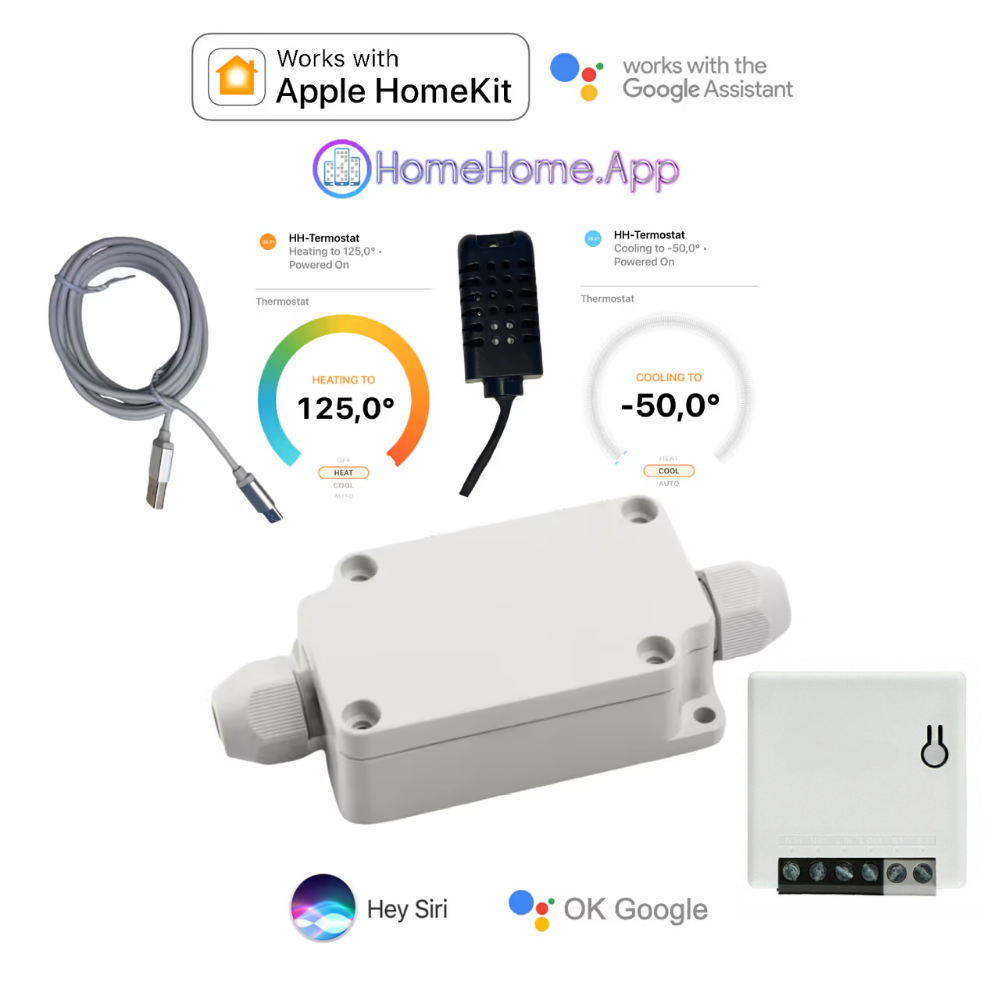

Super Smart Temperature/Humidity Sensor With Virtual Thermostat Switch

• Outdoor IP67 Temperature / Humidity Sensor Box Dimensions : 80x50x20 mm
• High Temperature Range : -50C to +125C



• Actuator for your heater/cooler : Sonof Mini without its own box; It fits perfectly in the IP67 Box.



• Use sensor and mini relay together for complete thermostat system.
• Sensor box shown as thermostat which have an additional accessory : Virtual Switch
• Add automation to HomeKit: When Virtual switch is ON, turn on Mini Switch



• Sensor box have 2 Meters USB cable for power supply, works with 5v DC.



• Sensor box with waterproof temperature option have 80-100CM sensor cable length
• Sensor box with temperature/humidity option have 20-25CM sensor cable length

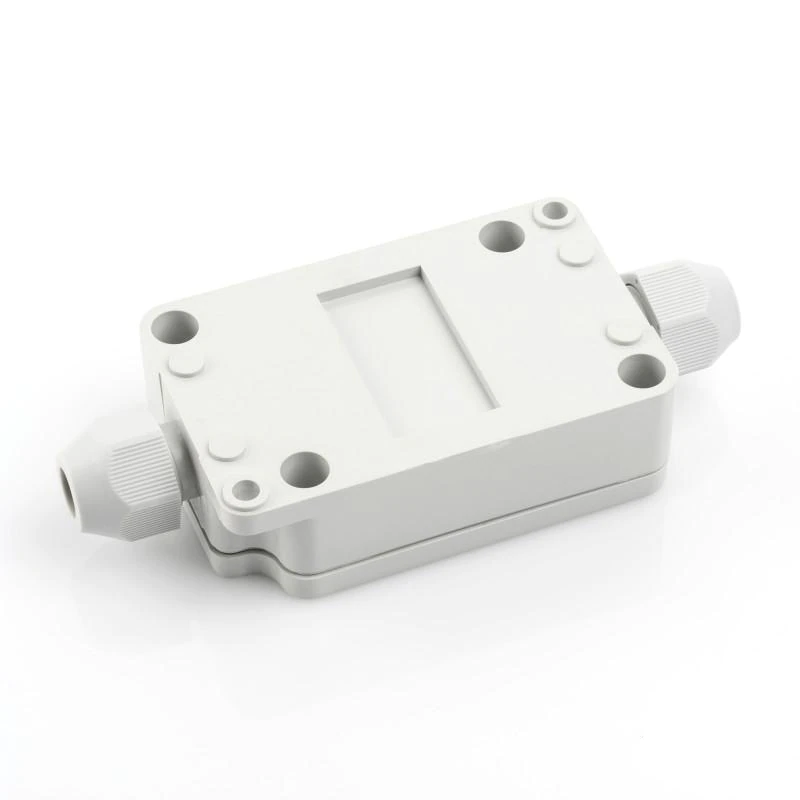

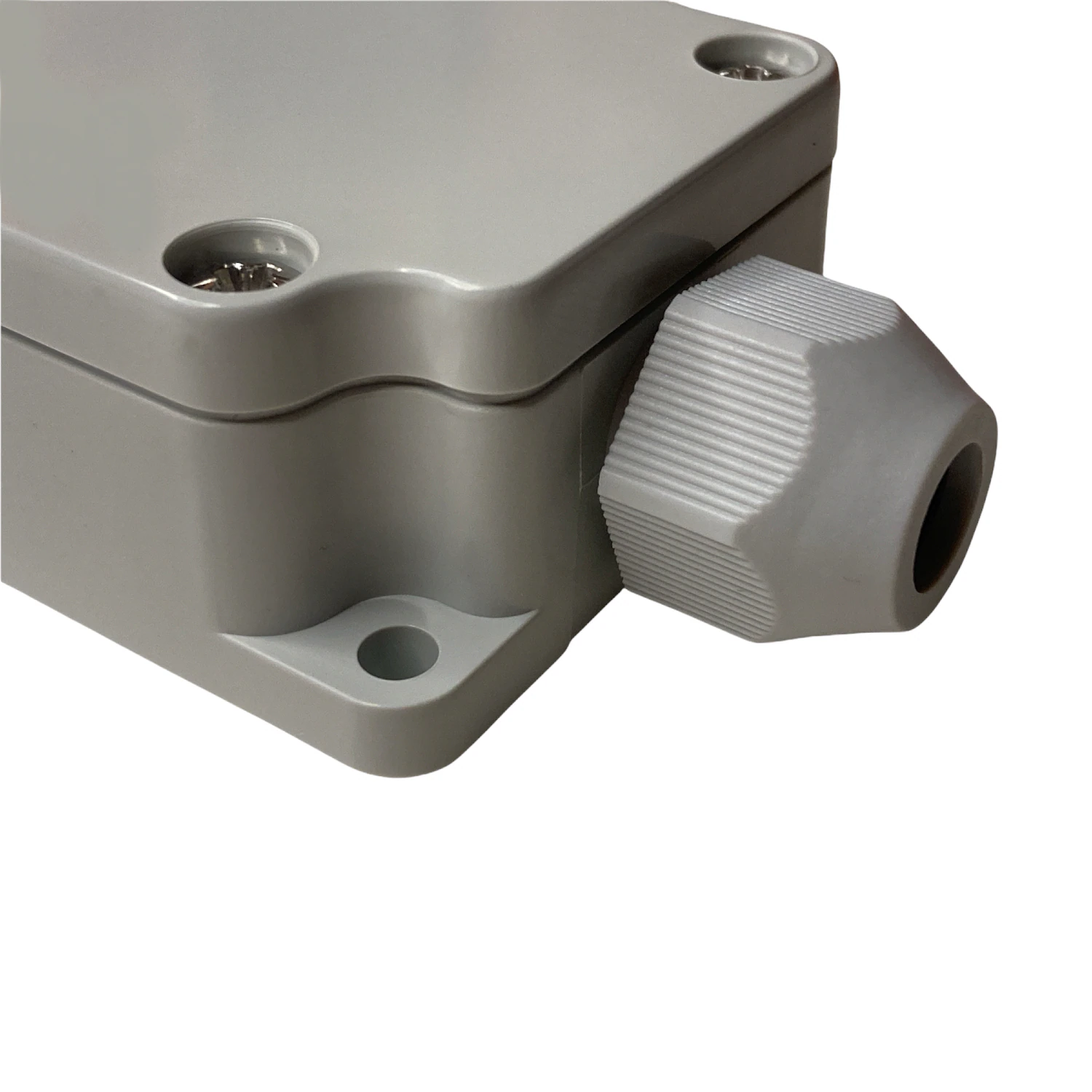

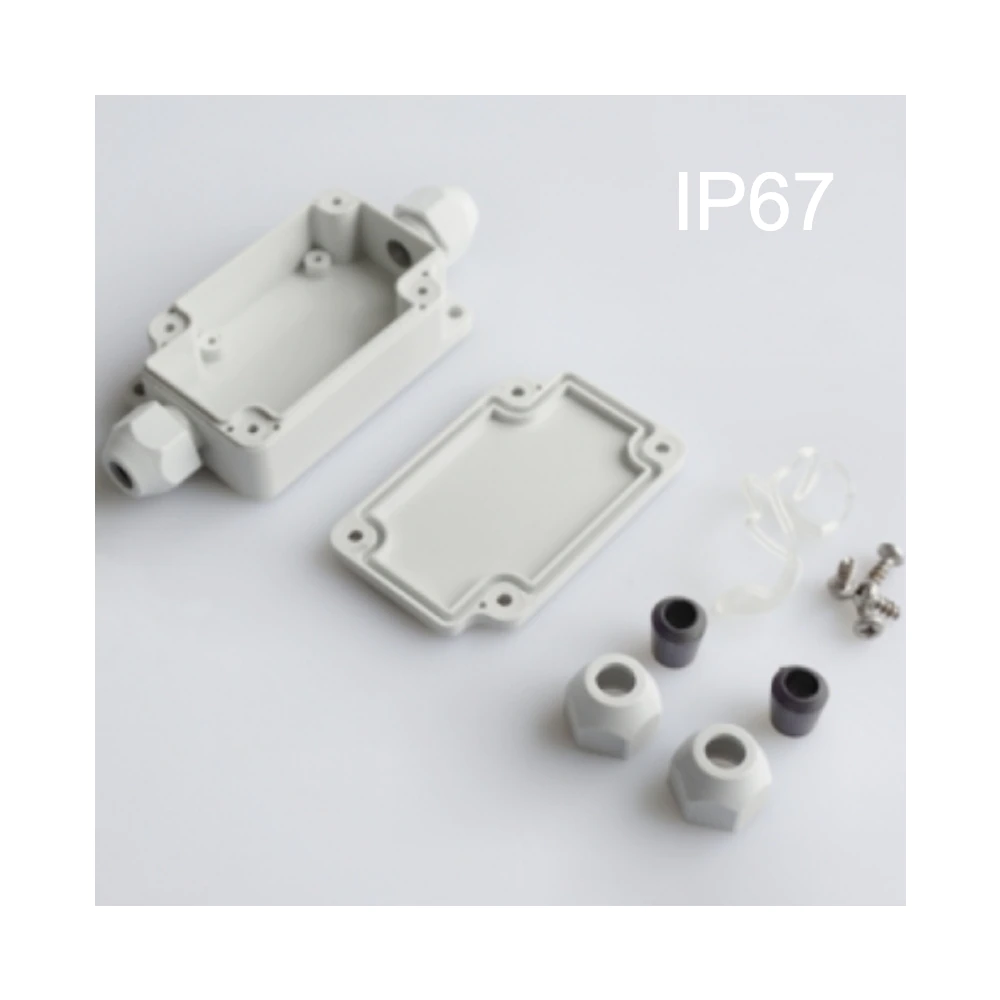

• IP67 Box Dimensions : 80x50x20 mm 2x Cable Gland [PG9]



• You can install IP67 Case to a wall with its ears.



Everything at once!

Apple HomeKit

Google Home

Web UI

3.Party Http protocol integration

Local Http server.

All in one with a single iot device

No Additional Hub Required: Unlike some other smart home devices, this relay module doesn’t demand an extra hub or gateway. The simplified setup not only reduces complexity but also saves you costs, ensuring an efficient and straightforward solution.Home app requires Apple TV or HomePod. No Hub / Gateway required for Google Home, controlling from local IP address or HomeHome.App web interface.

– Everything Synchronized
