80mm frameless option need frame accessory which is sold separately.

M5-1C: 10A
M5-1C: 2200W

On Off mode supports Alexa

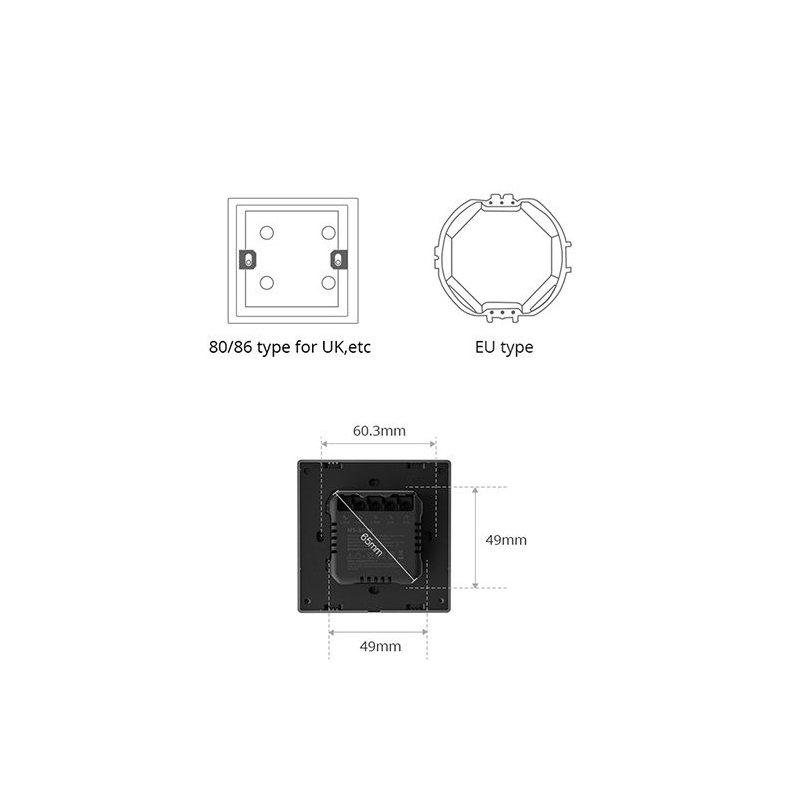

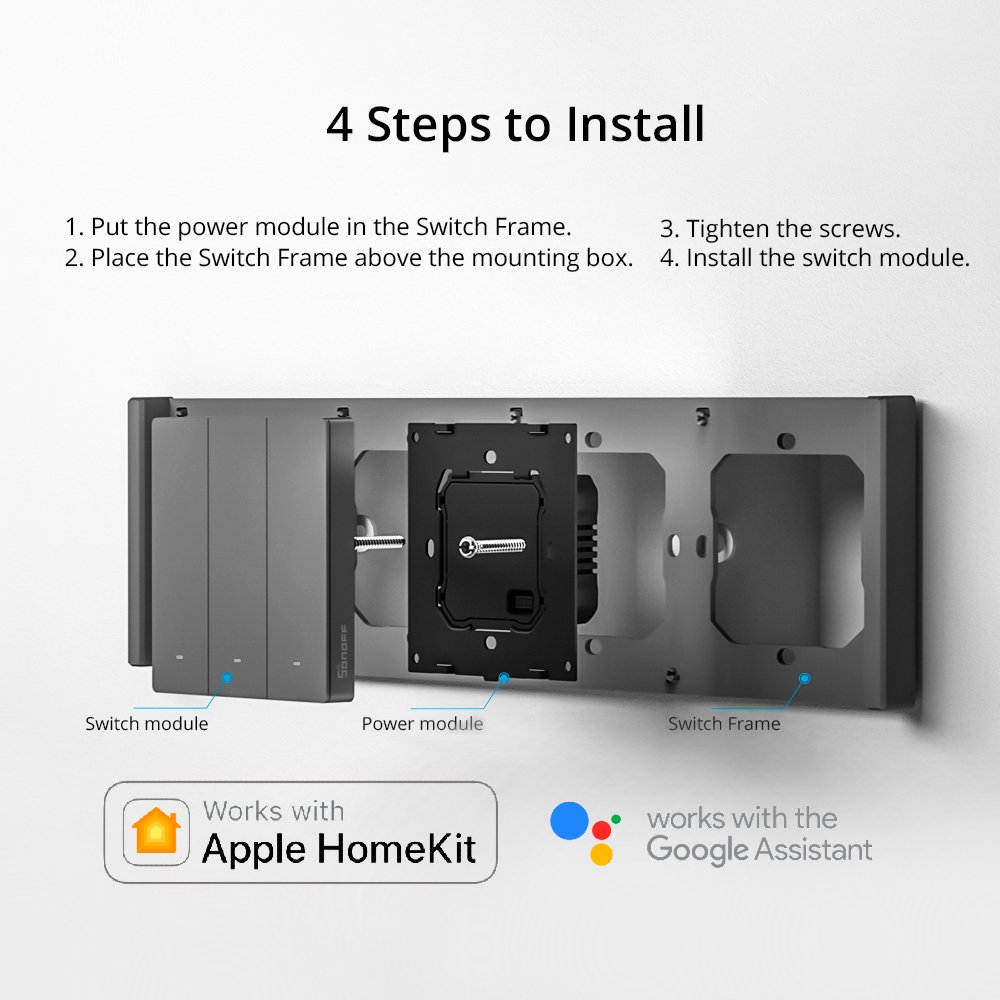

Please check the dimensions of the Frame; if you will use in a  wall set. Frames are in Accessories category.
All buttons ar also a Scene controller!

Wi-Fi: IEEE 802.11 b/g/n 2.4GHz

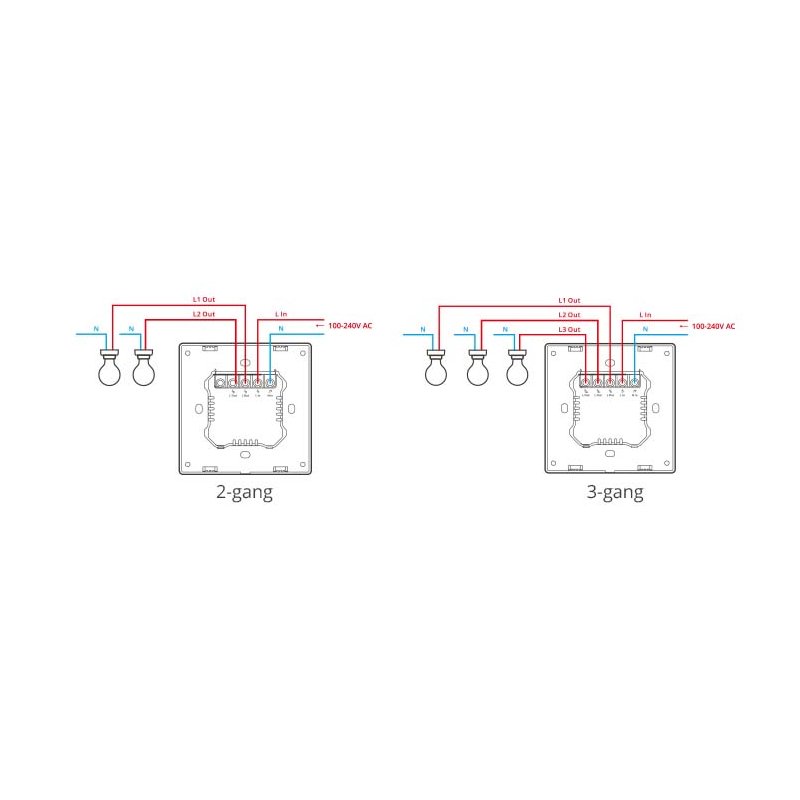

Gang: 1-gang/2-gang/3-gang
Casing material: PC VO
Working temperature: -10°C~40°C
Voltage: 100-240V AC 50/60HZ
Output: 100-240V AC 50/60HZ
Current output:
M5-1C: 10A
M5-2C: 10A (5A/Gang)
M5-3C: 6A (2A/Gang)
Max. power:
M5-1C: 2200W
M5-2C: 2200W (1100/Gang)
M5-3C: 1320W (440W/Gang)
Apple: Apple HomeKit
Google: Google Home
Apple Voice Control: Siri
Google Voice Control: Google Assistant
Smart WiFi Switch

Support: IOS Android


Everything at once!

Apple HomeKit

Google Home

+Alexa support added

Web UI

3.Party Http protocol integration

Local Http server.

– Everything Synchronized


All in one with a single iot device

No Additional Hub Required: Unlike some other smart home devices, this relay module doesn’t demand an extra hub or gateway. The simplified setup not only reduces complexity but also saves you costs, ensuring an efficient and straightforward solution.Home app requires Apple TV or HomePod and Alexa app requires Amazon Alexa. No Hub / Gateway required for Google Home, controlling from local IP address or HomeHome.App web interface.



Power of ESP32 with our special firmware

Super Easy Setup

You will easily setup with single page, user friendly form.


Q:How to setup?

When you plug the device it will broadcast WiFi network : “HomeHome-xxxxxx” Password is “homehome” Join the network, make setup in captive portal;

-Select your device type

-Enter gmail address

-Select your router and enter password


You can change other device settings by entering ip address of your device like:

Auto Turn Off Feature – Set relay auto off from 1 second to 24 hours .

Q:Internet Required?

You can use Apple HomeKit and local http server (write your device ip in to a web browser) without internet.

Google Home and Web UI needs internet connection.

Q:Updating device firmware?

If there is a firmware update, you can upload firmware file, check support page.

Ağırlık 0,15 kg

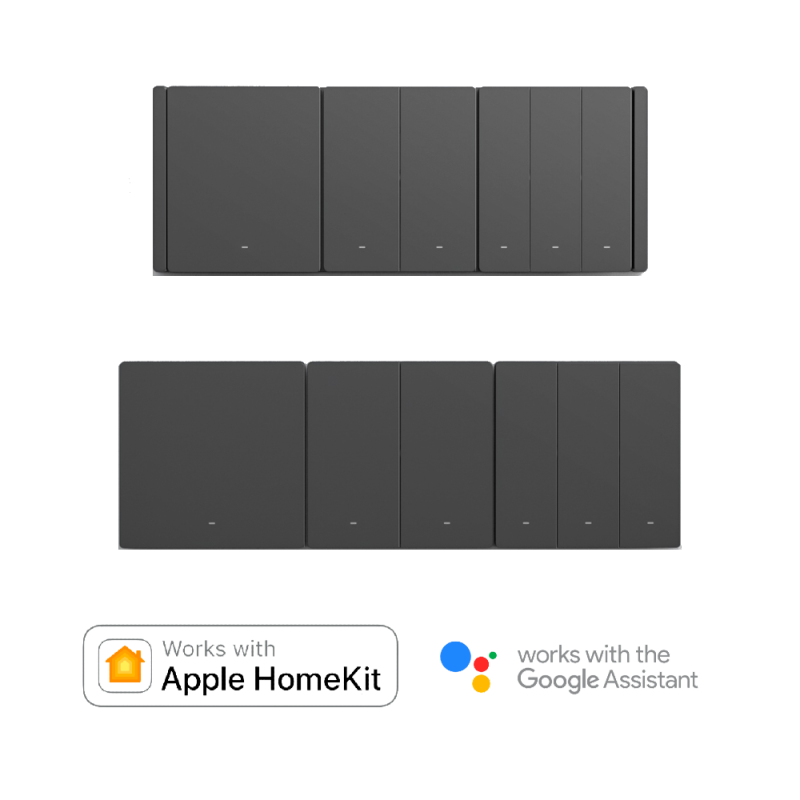

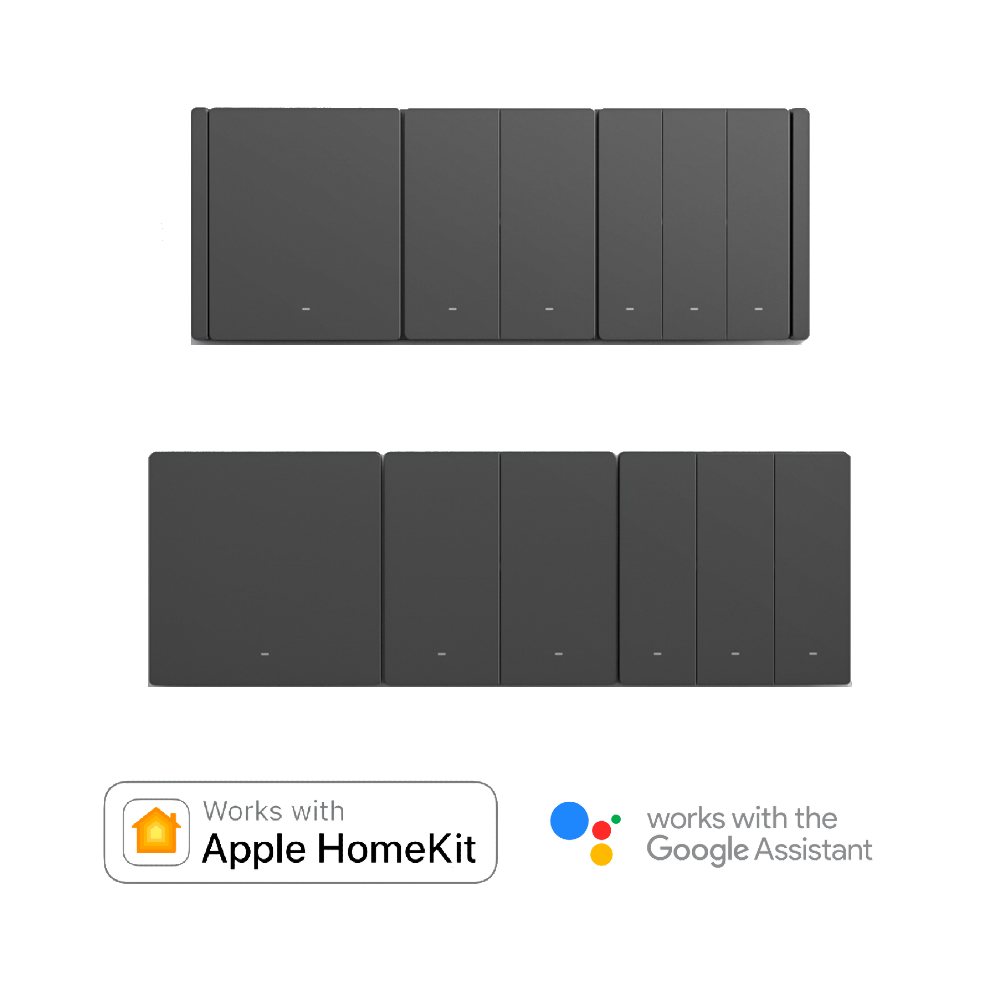

M3-86, M3-80 Frameless

Frame options:

80mm Frameless, 86mm
