SPECIFICATIONS



This device have 2 modes:

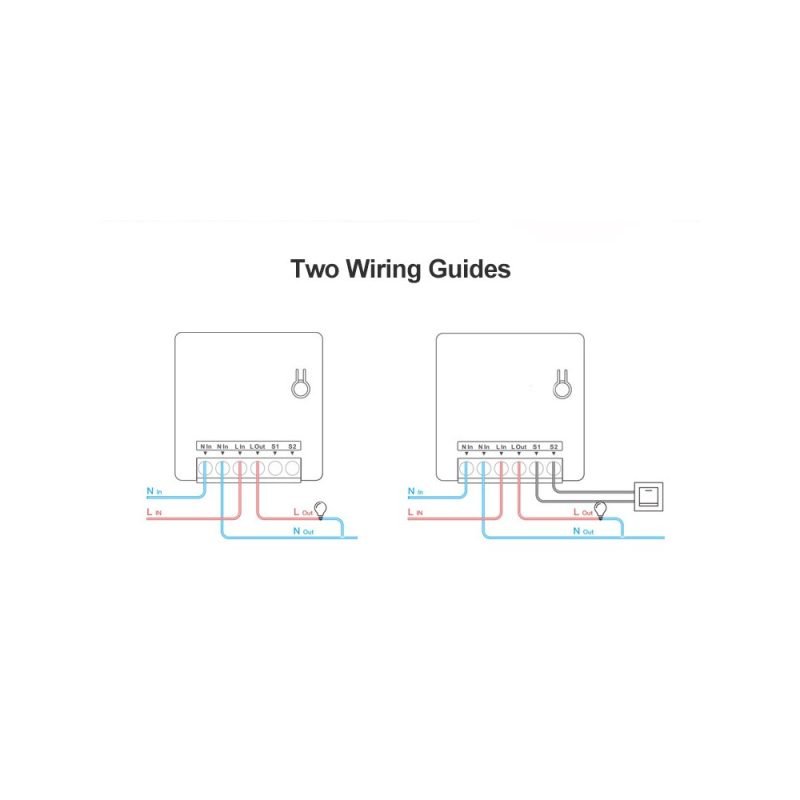

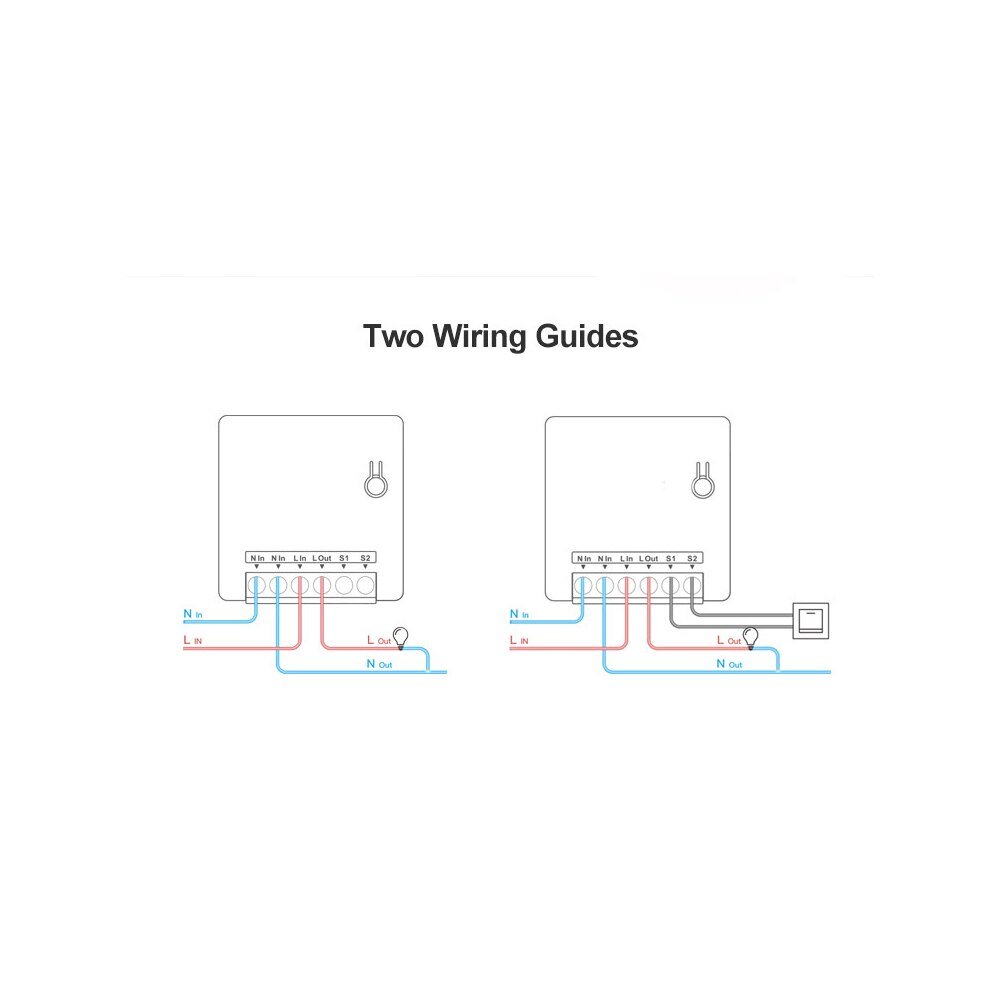

1-Normal on off switch with button input (set toggle or momentary)

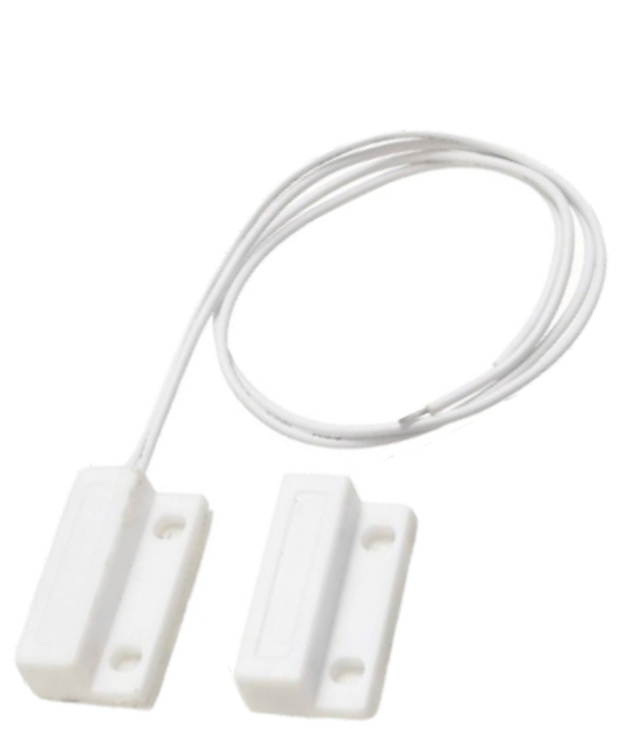

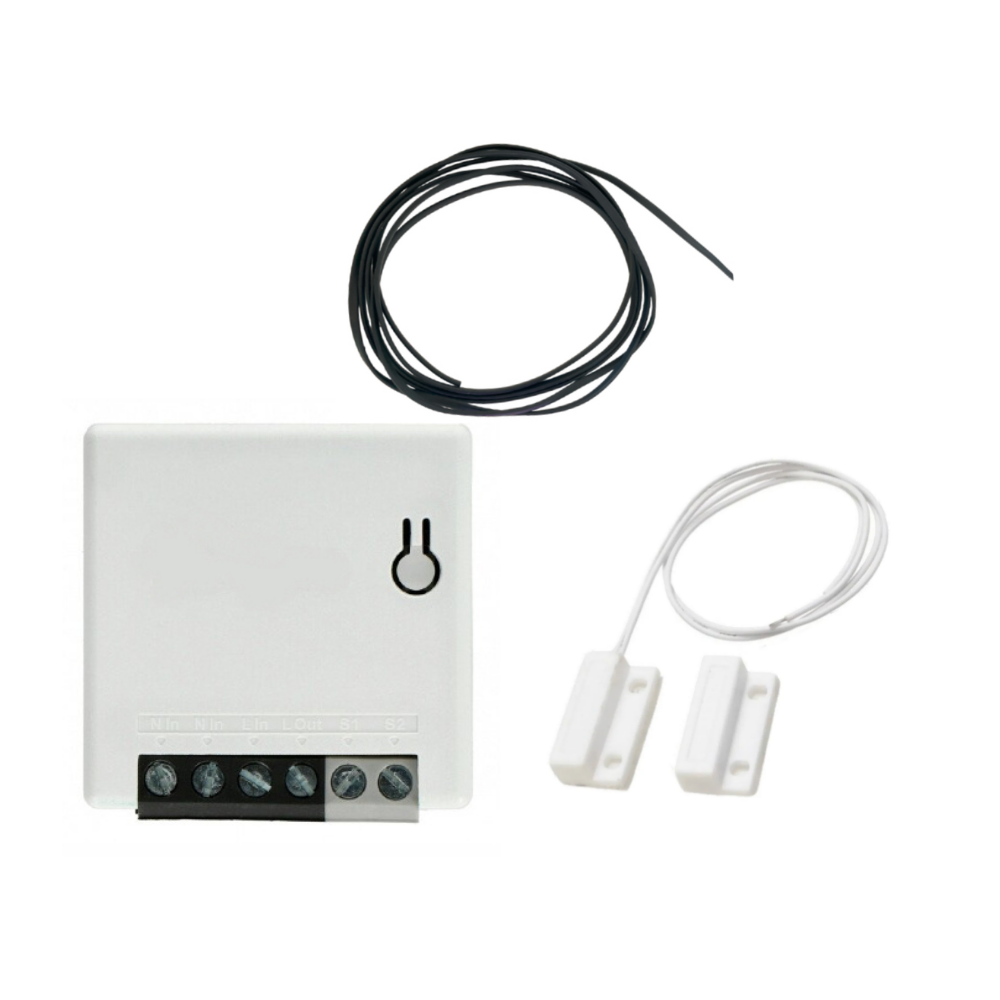

2-Garage door opener (connect magnetic contact to s1 – s2 terminals) Garage mode will trigger your motor 1 second and it will open/close. Please be sure your motor’s trigger input works with AC voltage.



• Button input doesn’t work with AC voltage. Please be careful when wiring the device.
• AC voltage in – AC voltage out





Work With: HomeKit

Wireless Standard: 2.4GHZ, 802.11 b/g/n

WiFi: EEE 802.11 b/g/n 2.4GHZ

Weight: 45g

Voice Control: Siri

Supports: IOS Android

Support: Google Home

State of Assembly: Ready-to-Go

Smart Home: Smart WiFi Switch

Output: AC 100-240V 50/60Hz 10A Max

Origin: CN(Origin)

Model: Mini

Max current: 10A

Max Wattage: 2200W

Material: PC V0

Input: AC 100-240V 50/60Hz 10A Max

Google Voice Control: Google Assistant

Function: 1 Gang WiFi Switch

Feature: WiFi Mini Switch

FCC Certification: FCC

External Switch: Work With An External Switch

Enclosure Material: Fire-retardant PC V0

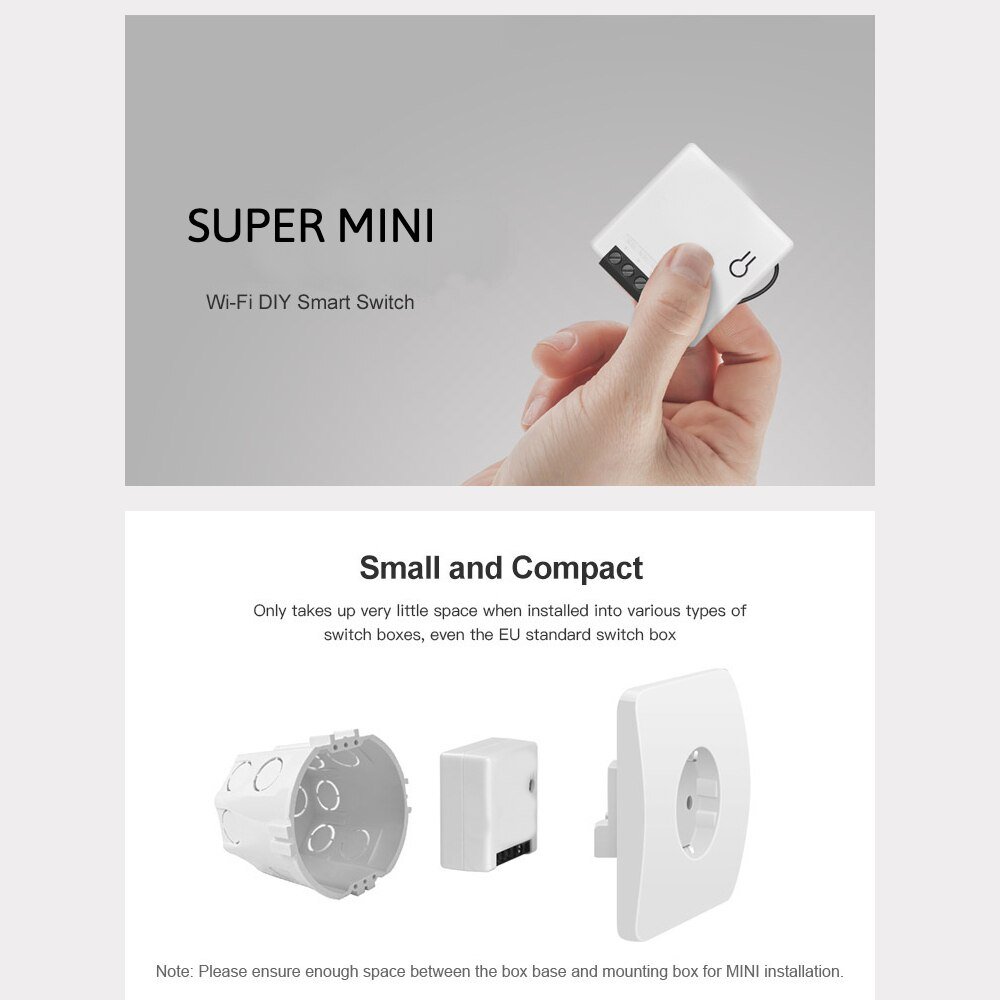

Dimensions: 42.6X42.6X20mm

Compatibility: All Compatible

Color: White

Certification: FCC

CE Certification: CE

2 Way: 2 Way 1 gang switch





Everything at once!

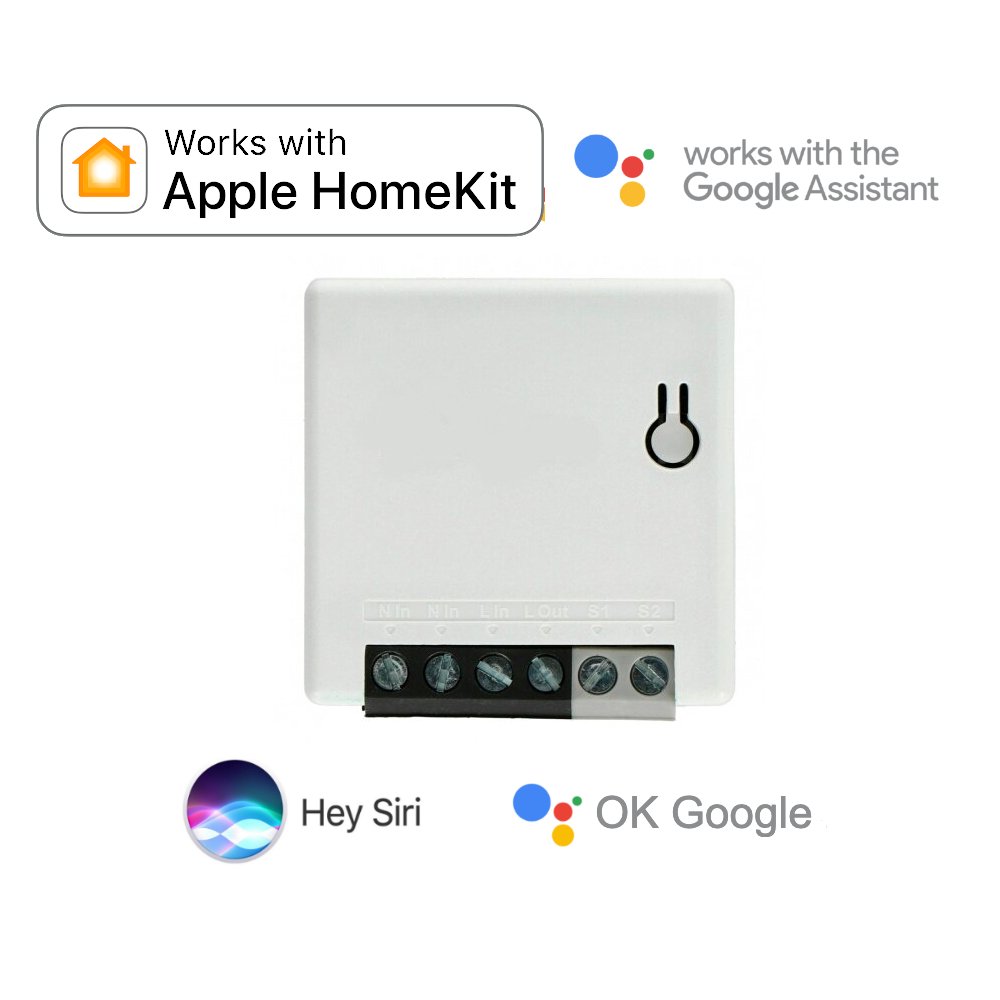

Apple HomeKit

Google Home

Web UI

3.Party Http protocol integration

Local Http server.

All in one with a single iot device

No Additional Hub Required: Unlike some other smart home devices, this relay module doesn’t demand an extra hub or gateway. The simplified setup not only reduces complexity but also saves you costs, ensuring an efficient and straightforward solution.Home app requires Apple TV or HomePod. No Hub / Gateway required for Google Home, controlling from local IP address or HomeHome.App web interface.

– Everything Synchronized
